Tapered 20M 8 lights High Mast Pole with HPS Light for Parking Lot area lighting
Options
Height from 15m to 50m
Custom-made luminaire fixing bracket to suit customers' requirements
Double luminaire carriage ring
Features:
Excellent brightness
Easy installation
Long operational life
Energy efficient
Quick Product Description-High Mast Lighting Pole
| Item |
20 MTR |
| Material Construction |
Q345(Gr50) |
| No. of Longitudinal Welds |
Single |
| Cross section of mast in polygon((No. of Sides) |
Octagonal,dodecagon,hexadecagon |
| Thickness |
4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length |
9375mm |
| Base & Top dia (OAF) |
422/200mm |
| Thickness of galvanization(Average) |
86 Microns |

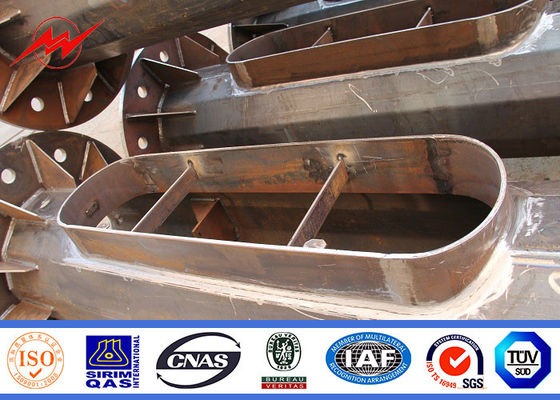

| Size of opening door at base |
360 x 1400 mm |

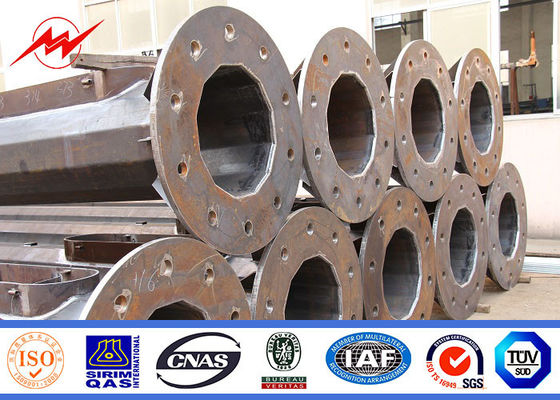

| Size of base plate diameter |
625 mm |
| Size of base plate thickness |
32 mm |
| Number of foundation bolts |
8 |
| Bolt diameter |
28 mm |
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
Application:
1) Main Juction
2) Highways
3) Street Road
4) Storage Yard
5) Area Lighting
6) Party Plot
Description
Milky Way’s single tube, high mast structures can reach heights up to 250 feet, and are adaptable to lowering devices or fixed mounting arrangements. Innovations such as the organization’s low-drag, internally wired fixture platform, which works with round or multi-sided shafts, has made Valmont a top choice for customers needing high-mast lighting towers
More Products
Company Ability
Ability to bend 30 mm with length 16 m steel grades 355, 6 minutes needed to produce high mast one shell
Length Up to 75 M
Thickness Up to 32 mm
Grade of steel St 37 & St 52
Diameter from 350 to 650 mm in one shell & Up to 2500mm in two shells
Polygonal Type (multisided, from 8 to 32 Sides) .
Line capacity is 120 poles /day for 1 shift (8 Hours).
Company:
Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
