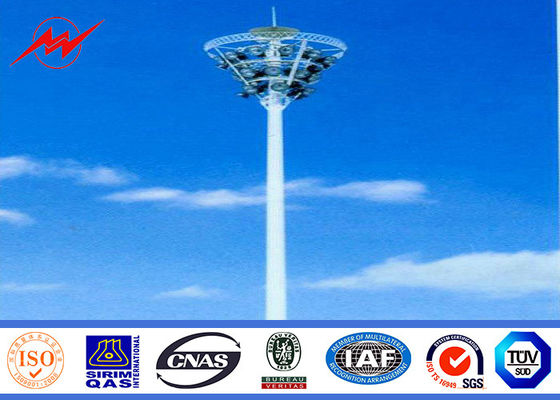

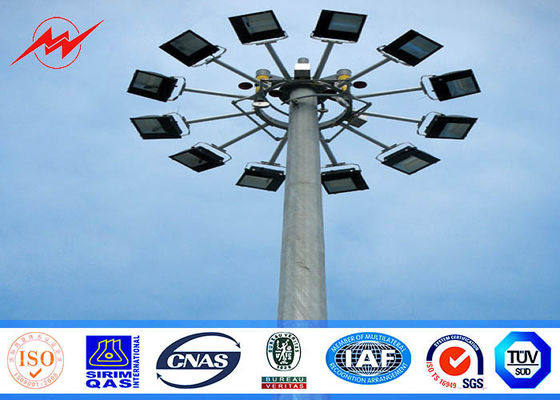

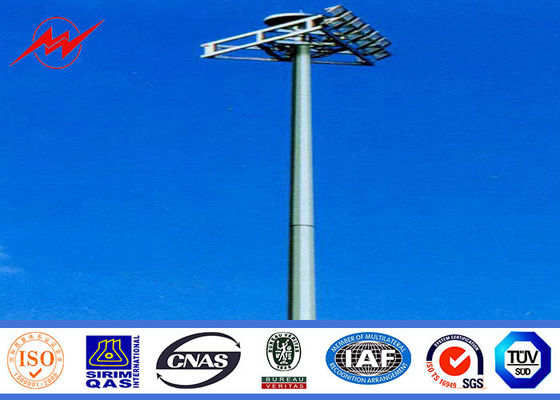

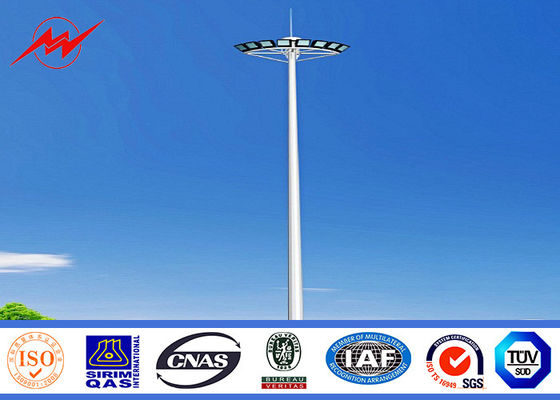

22M Height HPS High Mast Pole S355JR steel material with rasing system for shopping malls lighting
Quick Information
Sourced from trusted vendors of market, the offered High Mast Poles are made available in several specifications as per the requirements of our clients. These poles are highly demanded in various construction sites, highways, road intersections and play grounds for providing multi-directional light with equal intensity.
Application:
Parking lots
shopping malls
walkways
building entrances
Quick Product Description-High Mast Lighting Pole
| Item |
22 MTR |
| Material Construction |
Q345(Gr50) |
| No. of Longitudinal Welds |
Single/Double |
| Cross section of mast in polygon((No. of Sides) |
Octagonal,dodecagon,hexadecagon |
| Thickness |
4mm,6mm,8mm,10mm or customized design |
| Individual Section’s Length |
11375mm |
| Base & Top dia (OAF) |
450/200mm |
| Thickness of galvanization(Average) |
86 Microns |
| Size of opening door at base |
360 x 1400 mm |
| Size of base plate diameter |
650 mm |
| Size of base plate thickness |
32 mm |
| Number of foundation bolts |
12 |
| Bolt diameter |
28 mm |
Application Area:
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load bearing strength oscillation due to wind speed and related stress are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches. These are self lubricated for sustained trouble free life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and various types and shapes. The lantern carriage is supported with three numbers flexible 6 sq. mm. S.S. wire ropes from the distributors that can be elevated/lowered electrically and mechanically.
FINISH :
The complete mast with component is fully hot dip galvanized for longer life.
Workshop
Company Introduction
Established in the year 1991, we “Jiangsu Milky Way” are based in Jiangsu, China.
We are the one of the leading manufacturers and suppliers of a wide range of electric equipments like:
lighting fixtures, poles, luminaries & other accessories that include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged Poles & Bracket Design, Commercial & Decorative Luminaries, CFL Luminaries, Industrial Highway Luminaries, Street Light Luminaries, Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries, Plant Light Luminaries, Accessories.
The entire range of equipment is manufactured using superior quality raw material and ensures reliability.
These products are extensively used in Offices, Schools & Colleges, Residential Complexes, Resorts, Hotels, Industries, Highways, Petrol Pumps, Yard Lighting & Stadiums.
