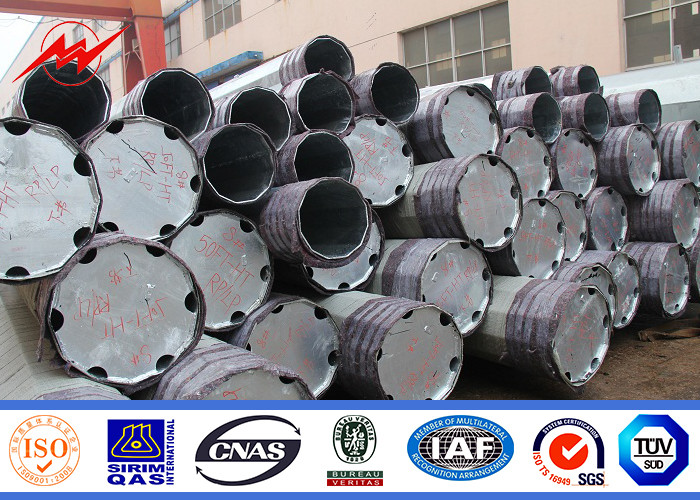

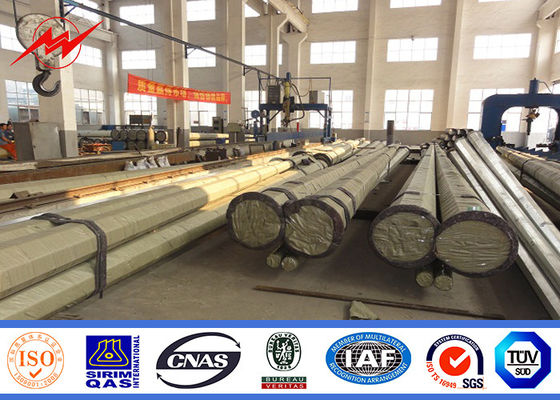

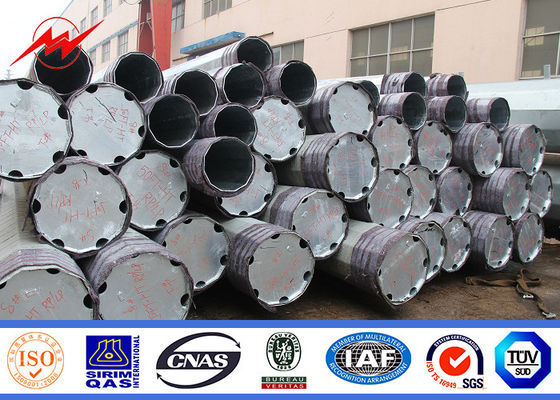

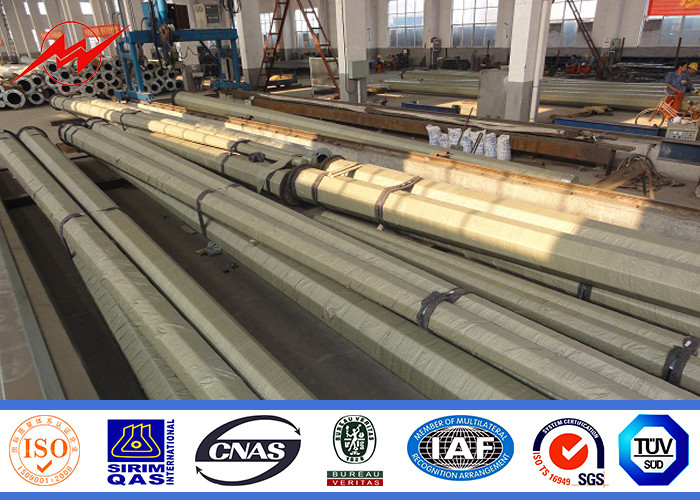

Galvanized 12m Single Arm Street Light Poles for Road Lighting
Galvanized 12m Single Arm Street Light Poles for Road Lighting
Temel Özellikler
Menşe Yeri:
Jiangsu, China
Marka Adı:
Milky Way
Sertifikasyon:
ISO, BV,
Model Numarası:
Sample Desgin Galvanized Q235 Single Arm Electric Street Light Poles
Ticaret Mülkleri
Minimum Sipariş Miktarı:
one 40 HQ
Fiyat:
Anlaşılabilir
Ödeme Koşulları:
T/T
Tedarik Yeteneği:
300 pieces pole per day
Ürün Özetleri
Sample Desgin Galvanized Q235 Single Arm Electric Street Light Poles 1. solar street light pole 2. High light transmission and efficiency 3. Solid, rustproof and durable 4. Water-proof Straightness
Ürün Özel Nitelikleri
Vurgulamak
street lighting poles
,galvanized street light pole
Optical assembly of lighting fixture:
IP 65
Lamp power:
400w
Shape:
round
Design of pole:
against earthquake of 8 grade
Wind Speed:
30m/s
Thickness:
4mm
Ürün Açıklaması
Ayrıntılı özellikler ve özellikler
Sample Desgin Galvanized Q235 Single Arm Electric Street Light Poles
1. solar street light pole
2. High light transmission and efficiency
3. Solid, rustproof and durable
4. Water-proof
|
Straightness |
<0.2% |
|
Length variation |
<+5nlm |
|
Shaft body tortuosity |
<5° |
|
Rod straightness |
<1mm |
|
Curved arm tortuosity |
<2° |
|
Curved arm across flat deviation |
<15° |
|
Flange and Rod vertical deviation |
<1° |
|
Flange welding position deviation |
<2mm |
|
Zinc coating thickness |
≥86um |
|
Powder coating thickness |
≥100um |
|
Wind speed |
36.9m/s |
Power LED light source of its appearance founder special atmosphere, full of strong and generous with the king. King, leaders. King for the king's magnanimity is not only a style, but also to have the king of the quality and content. By industry experts together to build this section the intrinsic quality of new lamps reasonable, effective, perfect.
Product features:
1. Imported LED chip, UV and infrared, light-efficient, more stable.
2. LED packaging using high thermal conductivity of patented technologies and patented three-chamber cooling technology to effectively reduce the light resistance, the clip junction temperature can be controlled at 60 degrees below, to ensure the lamp life of over fifty thousand hours or more chips.
3. The use of ultra-high thermal conductivity aluminum radiator, corrosion-resistant surface coating superconducting hot metal paint, to ensure faster heat generated LED light source distribution.
4. Use of patented technology and specialized secondary optical lens specially designed for LED specturm and high light transmission tempered glass lamp shade, to ensure that lighting a light rate of 85% or more.
5. Wide input voltage AC drive voltage constant current, ensure that the lighting for different countries and regions, high power factor, harmonic small. Constant current driver can adjust the brightness according to different time slots.
6. Lamp appearance by the professional aesthetic design, simples, elegant, fashion.
7. Applications: highway, main roads secondary roads, alip roads and so on.
Structural feature:
1. Shell cast by 1800T die-casting machine, featuring high strength and compact structure.
2. Reflector is made of high purity aluminum plate extension-formed.
3. Top-lift-cover for easy repair and mainten-ance.
4. Internal bulb-replacement structure for excellent water and dust-proof property.
5. Highly-transparent toughened glass shade.
Technical parameters:
1. Protection: IP66
2. Shell's anti-corrosion property: class II
3. Working environment: -35°c~+45°c
4. Electric shock-proof rating: class I
5. Lamp holder: E40
6. Power source: 220V (±10%) / 50Hz
7. Lamp: 60W - 210W LED
