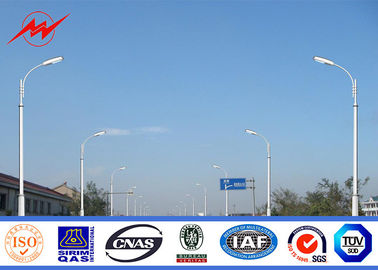

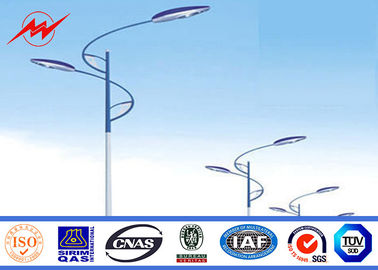

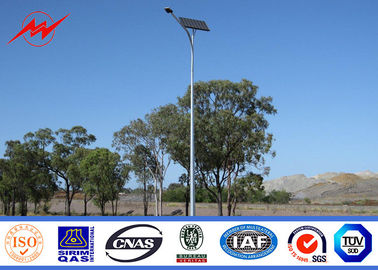

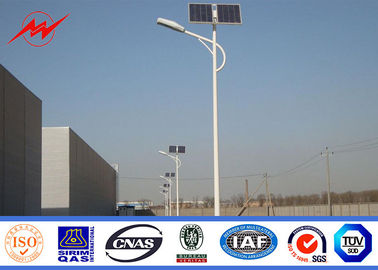

Q235 Hot Dip Galvanized Street Light Poles 12m With Cross Arm 1.8 Safety Factor
Q235 galvanizli sokak aydınlatma direği
,ISO galvanizli sokak aydınlatma direği
,Q235 galvanizli aydınlatma direği 12m
12m Q235 Steel galvanized hot dip galvanized Street Light Poles with cross arm
Specification:
|
Specification: |
20-50 meters street light pole |
|
Type |
street light pole |
|
Shape |
conical, hexagonal and octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal Conical tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
high mast pole suit for |
city square,wharf,stadium |
|
Option of high mast pole |
Height from 20m to 35m |
|
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2
(Other Material is Available on Request)
·Hot Dip Galvanized (≥86um)
·Any Color Polyester Powder Coated (≥100 um)
·Taper Conical , Octagonal, Polygon Section
·With demounted bracket design,easy loaded,install,and maintenance
·Theftproof slide lock
·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,
