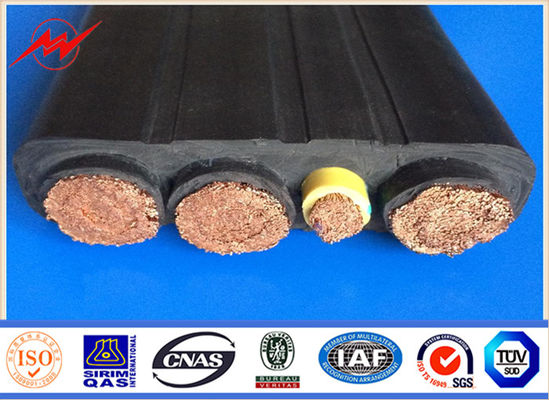

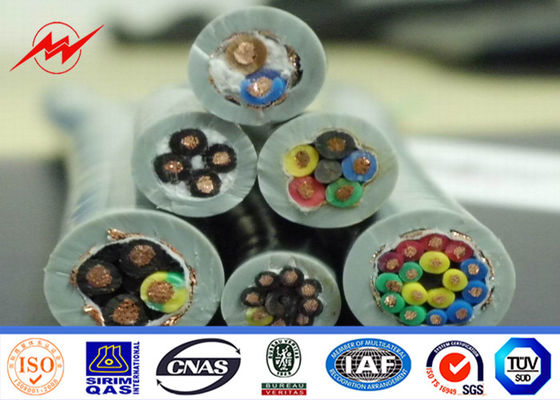

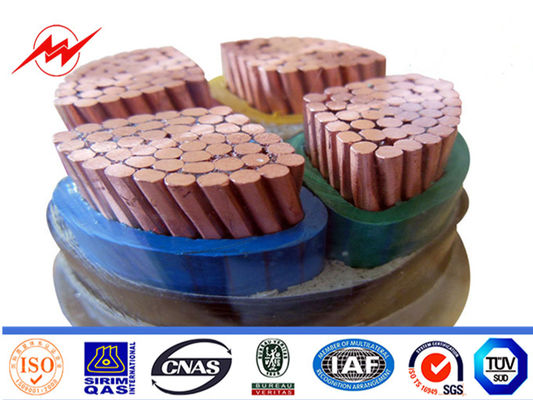

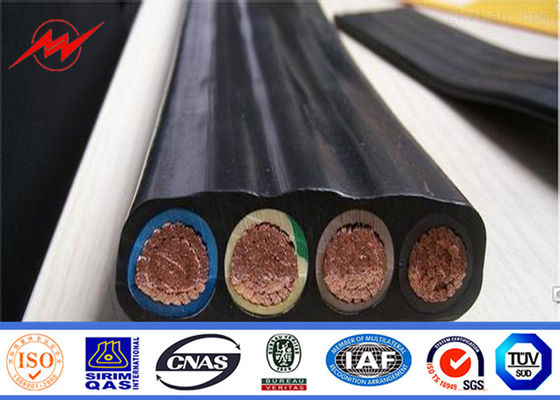

Copper Conductor Electrical Wires And Cables 4 Core Power Cable Paper Yarn
cables and wires
,aluminum electrical wire
Copper/Aluminum Alloy conductor electrical wire PVC insulated for power transmission.
Specifications:
|
Conductor |
99.5% Pure Oxygen Free Copper or Aluminum alloy |
|
sheath: |
PE.PVC/XLPE |
|
Voltage : |
0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV |
|
No. of cores: |
4 cores |
|
Section of conductor(mm ²): |
1.5—250 |
|
Application : |
Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working. |
|
INSULATION THICKNESS(mm) : |
1.0—2.79 |
|
Color: |
Black |
|
Packing: |
100 meters per roll or 500 meters per roll or as per requirement |
|
Delivery time: |
10—20 days |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union |
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Packing
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement
FAQ
Inquiry response: Your kind inquiry will be replied in 24 hours;
Sample: all cable sample is avaliable, the sample is for free;
OEM & ODM are acceptable to us;
Warranty period: 12 months
