Hot Rolled Mild Structural Galvanized Angle Steel 100x100 Unequal

1 ton
MOQ
Anlaşılabilir
fiyat
Hot Rolled Mild Structural Galvanized Angle Steel 100x100 Unequal
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Application: construction ,industry
Type: Equal or Unequal
Capability: 500tons per day
Dimensions: 20*20*3mm-200*200*24mm or customized
Model Number: Q235/Q345/SS400/S235/S275, ss400
Length: customized
Vurgulamak:

galvanised angle iron

,

galvanized steel angle iron

Temel bilgiler
Place of Origin: China
Marka adı: Milky Way
Sertifika: ISO9001/BV/
Model Number: Angle Steel
Ödeme & teslimat koşulları
Packaging Details: Container or as your request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 500tons per day
Ürün Açıklaması

Hot Rolled Mild Structural Angle Steel 100x100 For Construction



angle steel is commonly known as angle iron, both sides perpendicular angle steel shape of strip steel. angle steel can be divided into equilateral angle steel and unequal angle steel. Wide angle steel  two sides are equal. angle steel's specifications to the border thickness x width x thickness of mm number.



 Specifications:

Standard sectional dimension mm *mm

Weight kg/m

Standard sectional dimension mm *mm

Weight kg/m

25*25*3

1.12

90*90*6

8.28

30*30*3

1.36

90*90*7

9.59

40*40*3

1.83

90*90*10

13.3

40*40*5

2.95

100*100*7

10.7

45*45*4

2.74

100*100*10

14.9

45*45*5

3.38

100*100*13

19.1

50*50*4

3.06

120*120*8

14.7

50*50*6

4.43

130*130*9

17.9

60*60*4

3.68

130*130*12

23.4

60*60*5

4.55

130*130*15

28.8

60*60*6

5.37

150*150*12

27.3

65*65*6

5.91

150*150*15

33.6

65*65*8

7.66

150*150*19

41.9

70*70*6

6.38

175*175*12

31.8

75*75*6

6.85

175*175*15

39.4

75*75*9

9.96

200*200*15

45.3

80*80*6

7.32

200*200*20

59.7

80*80*7

8.48

200*200*25

73.6

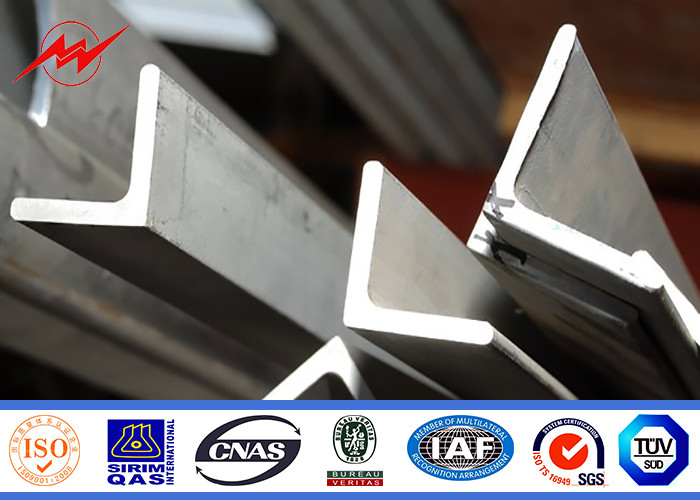

Hot Rolled Mild Structural Galvanized Angle Steel 100x100 Unequal 0

application:

angle steel is widely used in a variety of architectural and engineering structures, such as  beams,  bridges,  transmission towers, hoisting and conveying machinery, ships, industrial furnaces, towers, containers and warehouses .

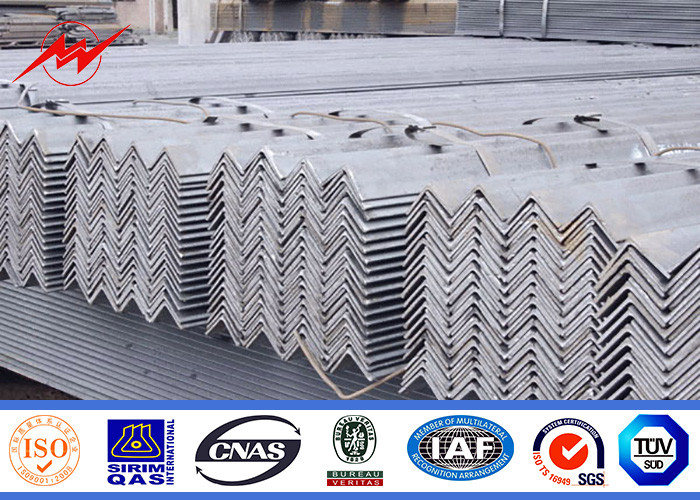

Hot Rolled Mild Structural Galvanized Angle Steel 100x100 Unequal 1

Our service:

    1. Reply your inquiry in 24 working hours.

    2. Experienced staffs answer all your questions in fluent English.

     3. Customized design is available. UEM&UBM are welcomed.

    4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

    5. Special discount and protection of sales are provided to our distributor.

     6 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

     7. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

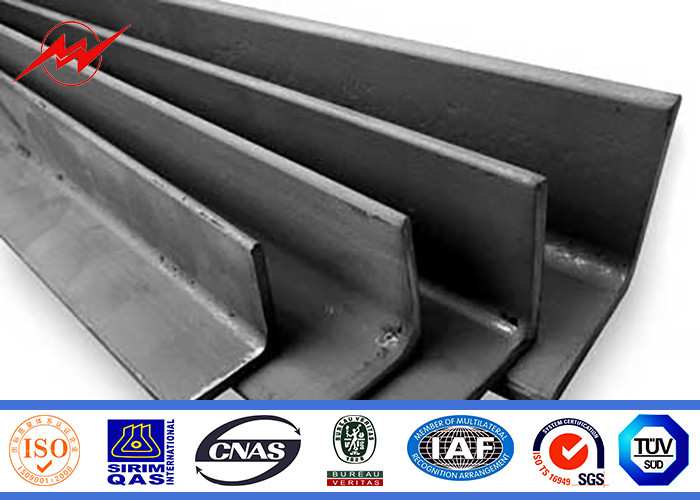

Hot Rolled Mild Structural Galvanized Angle Steel 100x100 Unequal 2
