4-8 meters street light pole with Customizable Length and Shape for Different Applications

Bir 40HQ
MOQ
Anlaşılabilir
fiyat
4-8 meters street light pole with Customizable Length and Shape for Different Applications
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
boyut toleransı: +- %2
Rüzgar direnci: 3-500km/s
Malzeme: GR50 GR65 S500 S355
Yükseklik: 4-8 metre sokak ışık direği
kaynak: Kaynak, uluslararası kaynak standardı CWB ile onaylar
Pudra kaplama: Saf polyester toz boyama, renk isteğe bağlıdır
Tasarım: 8. derece depreme karşı
Ürün adı: Farklı uygulamalar için özelleştirilebilir uzunluk ve şekle sahip 4-8 metre sokak ışık direği
Temel bilgiler
Menşe yeri: ÇİN
Marka adı: Milky Way
Sertifika: ISO//BV
Model numarası: Farklı uygulamalar için özelleştirilebilir uzunluk ve şekle sahip 4-8 metre sokak ışık direği
Ödeme & teslimat koşulları
Ambalaj bilgileri: Müşteri talebine göre
Teslim süresi: onaylandıktan sonra genellikle 2 hafta
Ödeme koşulları: T/T
Yetenek temini: Günde 300 adet direk
Ürün Açıklaması





Specification:



Specification: 4-8 meters street light pole
Type street light pole
Shape conical, hexagonal and octagonal
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
high mast pole suit for city square,wharf,stadium
Option of high mast pole Height from 20m to 35m
Flange mounted or planted type
Production Process of high mast pole Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

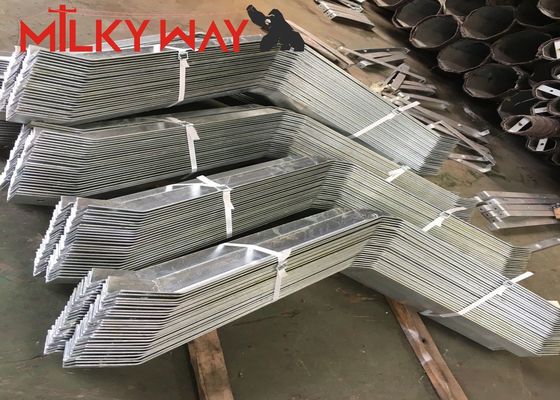

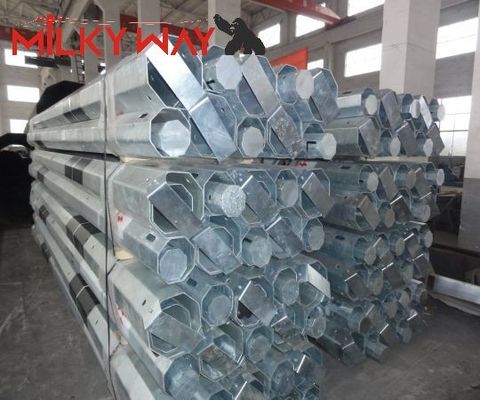

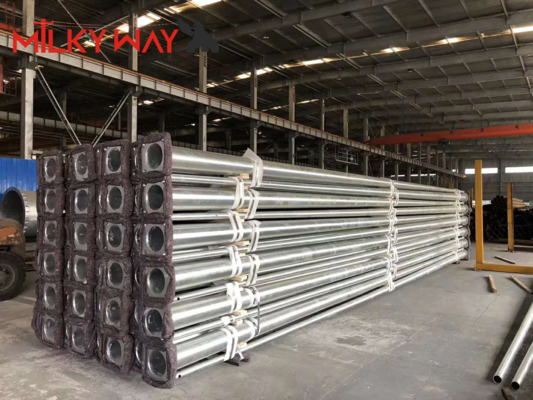

4-8 meters street light pole with Customizable Length and Shape for Different Applications 0





·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2

(Other Material is Available on Request)

·Hot Dip Galvanized (≥86um)

·Any Color Polyester Powder Coated (≥100 um)

·Taper Conical , Octagonal, Polygon Section

·With demounted bracket design,easy loaded,install,and maintenance

·Theftproof slide lock

·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,

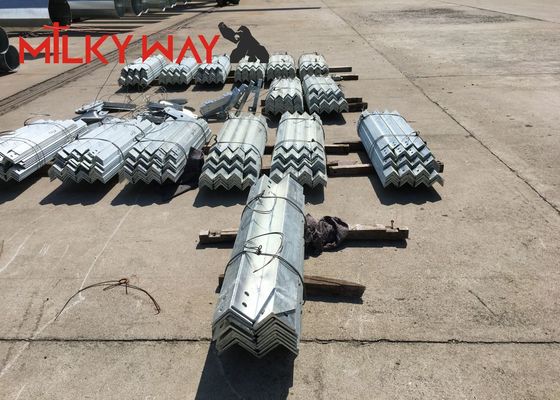

4-8 meters street light pole with Customizable Length and Shape for Different Applications 1
