Name: 132KV Yüksek Voltaj 15m ~ 30m Çelik Güç direği Sıcak Dip Glavanized Transmission Elektrik
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 132kV Yüksek Voltaj 15m ~ 30m Sıcak Dip Glavanize Ticaret Elektrik Çelik Güç Kutbu
Price: 500.00 USD
Availability: InStock

Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi

Özellikleri

Teknik Özellikler

Name: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

Type: 132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

Malzeme: ASTM 572 Sınıf 60, yieled mukavemeti ile en az 460mpa

Shape: Octagonal

Yükseklik: 15 ~ 30m

Galvanization standard: hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm

Kalınlığı: 3~6mm

Welding standard: AWS D1.1 with penatration rate no less than 80%-100%

Joint of poles: 50 years

Vurgulamak:

30 metrelik çelik güç direği

132KV çelik güç direği

15 metrelik çelik güç direği

Temel bilgiler

Place of Origin: China

Marka adı: Milky Way

Sertifika: ISO9001

Model numarası: 132kV Yüksek Voltaj 15m ~ 30m Sıcak Dip Glavanize Ticaret Elektrik Çelik Güç Kutbu

Ödeme & teslimat koşulları

Packaging Details: as per customer request

Delivery Time: usually 2 weeks after confirming

Payment Terms: L/C,T/T

Supply Ability: 300 pieces pole per day

Fotoğraf Galerisi

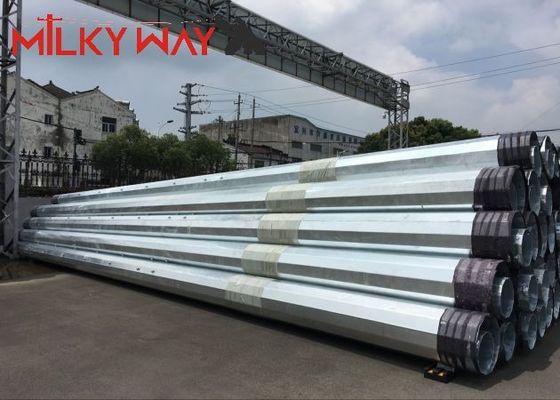

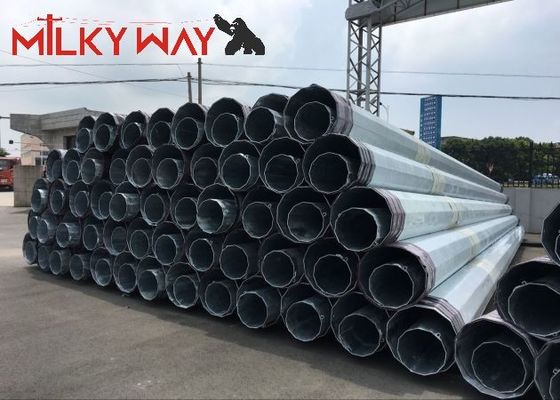

132KV Yüksek Voltaj 15m ~ 30m Çelik Güç direği Sıcak Dip Glavanized Transmission Elektrik

Ürün Açıklaması

132KV High voltage 15m~30m Hot Dip Glavanized Transmission Electrical Steel Power Pole

`Specification`	`132KV 15m~30m transmission electrical steel power pole`
`Type`	132KV 15m~30m transmission electrical steel power pole
`Shape`	`Octagonal`
`Material`	`ASTM 572 grade 60 with yield strength not less than 450mpa`
`Torlance of dimenstion`	`-0.02`
`Design Load in Kg`	`300~ 1000 Kg appliced to 50cm from the to pole`
`Surface treatment`	`Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm`
`Standard`	`Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123`
`Length of per section`	`Within 11.8m once forming without slip joint.`
`Option of steel power pole`	`Height from 15m to 30m Flange mounted or planted type`
`Production Process of high mast pole`	`Raw material test → Cutting →Molding or bending` `→Welidng (longitudinal )→Dimension verify →Flange welding` `→Hole drilling →Calibration →Deburr→Galvanization or powder` `coating ,painting →Recalibration→Thread →Packages`
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.

Products Picture

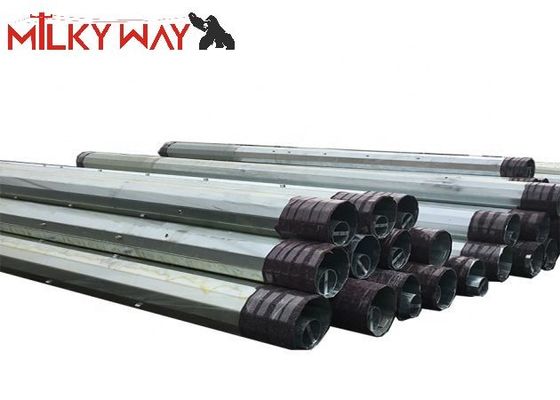

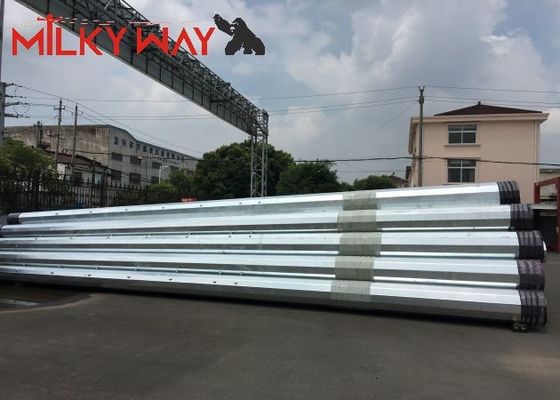

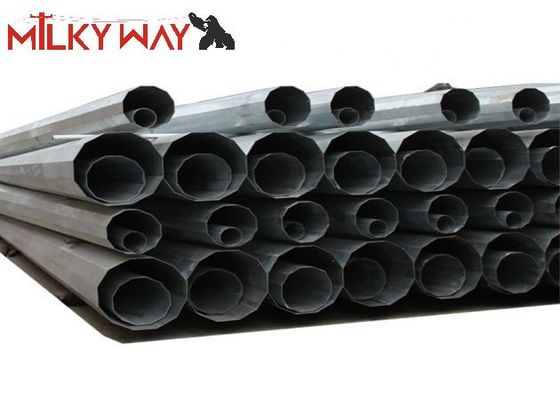

132KV Yüksek Voltaj 15m ~ 30m Çelik Güç direği Sıcak Dip Glavanized Transmission Elektrik 0

Material

ASTM 572 grade 50 with yield strength not less than 345mpa

3.Glavanization

---Average thickness of the galvanization : not less than 86 μm

4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

132KV Yüksek Voltaj 15m ~ 30m Çelik Güç direği Sıcak Dip Glavanized Transmission Elektrik 7

Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.

132KV Yüksek Voltaj 15m ~ 30m Çelik Güç direği Sıcak Dip Glavanized Transmission Elektrik 8
