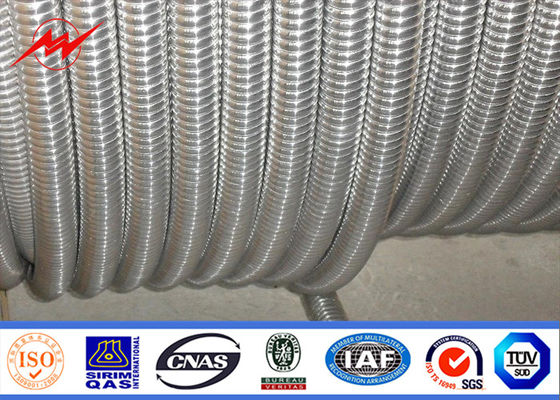

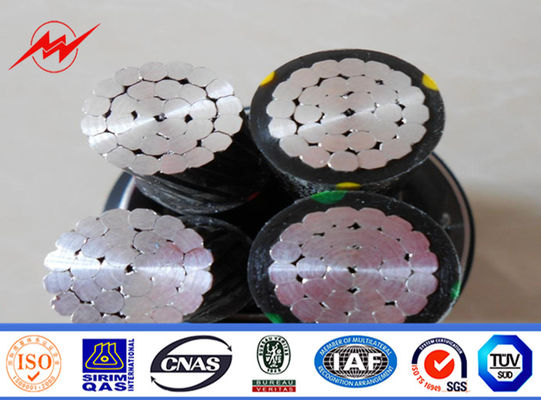

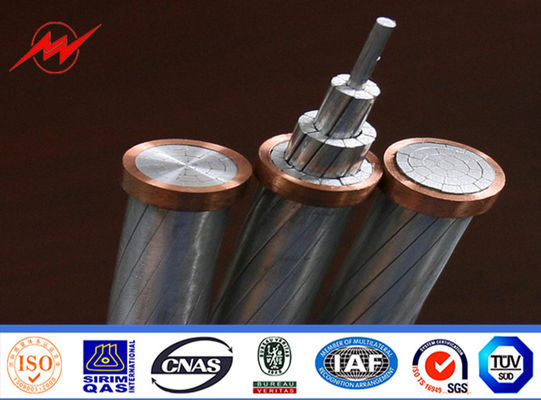

SWA Electrical Wires And Cables Aluminum Alloy Cable 0.6/1/10 Xlpe Sheathed
cables and wires
,aluminum electrical wire
SWA multi cores aluminum alloy cable 0.6/1kv xlpe sheathed
Specifications:
| Application : | Armored XLPE aluminum alloy cable are suited for laying indoors ,In cable trench ,On cable racks and in pipes. Unable bear external pressures and tensions. |
|
sheath: |
PVC/XLPE |
|
Outer Sheath: |
XLPE |
|
Conductor |
Aluminum alloy |
|
Voltage : |
0.6/1.2kv,10/22/35kv, |
|
No. of cores: |
1, 2, 3, 4, 5, 3+1, 4+1, 3+2 |
|
Section of conductor(mm ²): |
1.5~630 mm2 |
| Common Model name : |
VV Aluminum core ,XLPE insulated ,PVC sheathed power cable VLY Aluminum core, XLPE insulated ,PE sheathed power cable YJL XLPE insulated ,PVC/PE sheathed power cable KVV XLPE Insulated and sheathed Control Cable JKV Aluminum core PVC insulated aerial cable YJHLV XLPE insulated ,thin steel wire armored ,PVC/PE sheathed cable |
|
INSULATION THICKNESS(mm) : |
1.0—10 |
|
Color: |
BLACK |
|
Packing: |
100 meters per roll or 500 meters per roll or as per requirement |
|
Delivery time: |
10—20 days |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union |
Standard:
IEC 60502.1
GB/T 12706.1

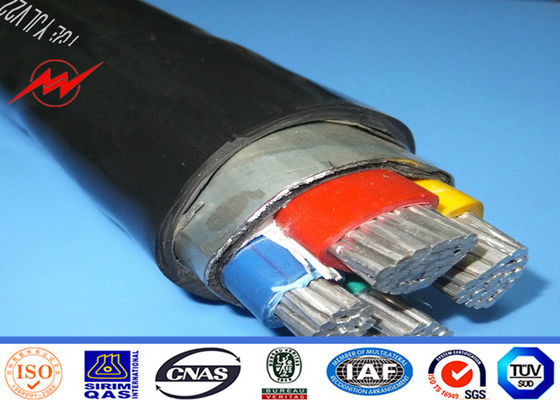

Structure: aluminium alloy conductor/XLPE insulation/interlocked aluminum armour
1. For single conductor cables, the bonding conductor is applied concentrically
around the phase conductor.
2. For multi conductor cables, the conductor consists of XLPE insulated phase cores and one bare bonding core.
Examples:
1: Rated voltage is 0.6/1kV, copper-core flame-retardant(105°C)PVC insulated and sheathed, steel tape armored, 3+2 type, main core section is 185mm2 and that of neutral core is 95mm2, such power cable can be represented by: BW105 -VV22 0.6/1kV 3 X 185+2 x 95
2: Rated voltage is 0.6/1kV, aluminum core PVC insulated and sheathed, 3+1 type, main core section is 50mm2 and that of neutral core is 25mm2, such power cable can be represented by: VLV 0.6/1kV 3 X 50+1 X 25
3: Rated voltage is 0.6/1kV,aluminum core flame-retardant PVC (105°C)insulated and PVC sheathed power cable with main core section to be 50mm2 and that of neutral core is 25mm2, it can be represented by: BW105-VLV 0.6/1kV 3 X 50+1 X 25
4: Rated voltage is 0.6/1kV,aluminum core flame-retardant PVC (135°C)insulated and PVC sheathed power cable with main core section to be 50mm2 and that of neutral core is 25mm2, it can be represented by:BW135-VLV 0.6/1kV 3 X 50+1 x 25
Packing
Steel reels of corrugated, outside wrapped by fuming wood; Packing length according to customer' requirement
