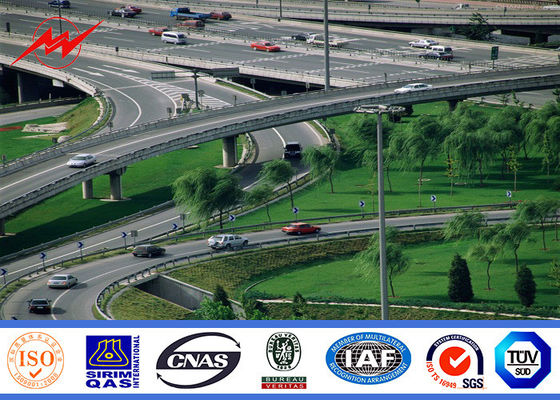

4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares
high mast lighting pole
,Park Light pole
4 Sections 10mm 40M High Mast Pole for Plaza Lighting with Climbing Rung
Specifications:
|
Specification: |
20-50 meters high mast pole |
|
Type |
high mast pole |
|
Shape |
conical, hexagonal and octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 SS400, SS490ST52 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal Conical tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
high mast pole suit for |
city square,wharf,stadium |
|
Option of high mast pole |
Height from 20m to 35m |
|
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Feature:
Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
Light source :400w-1000w sodium light
Application:
City squares, stations, ports, highways, stadiums, flyovers and etc
Standard:
Electric box protection level: IP23
Lamp protection level: IP54

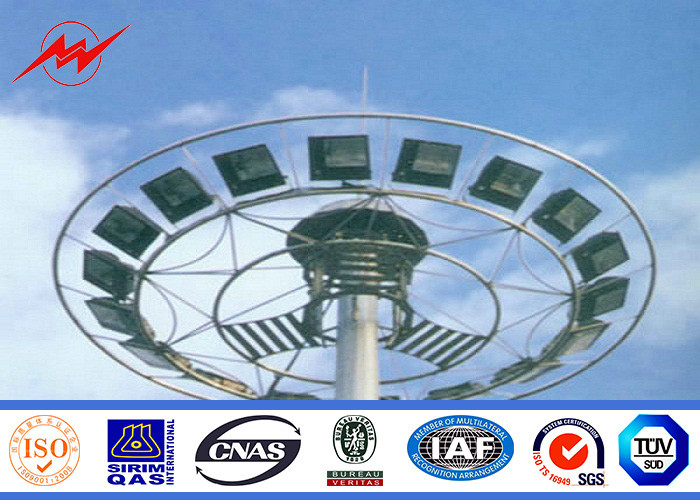

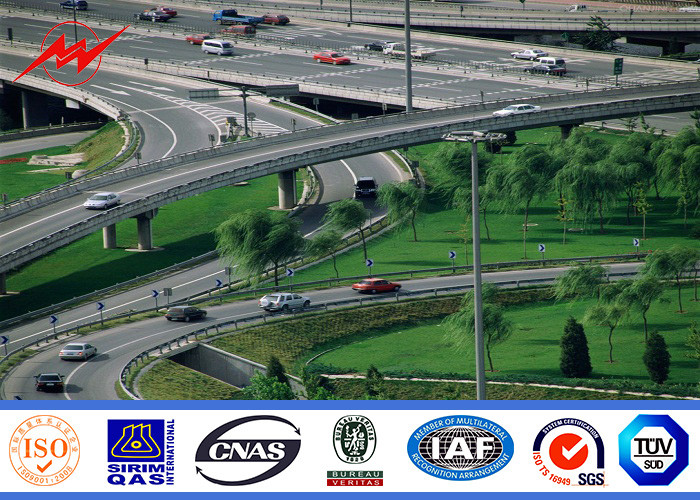

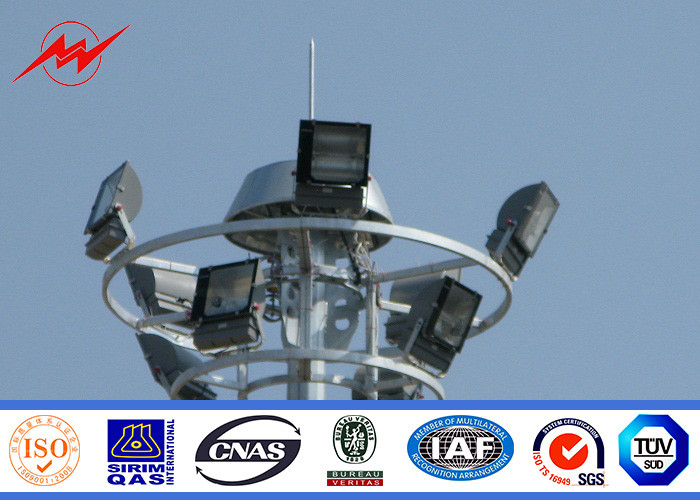

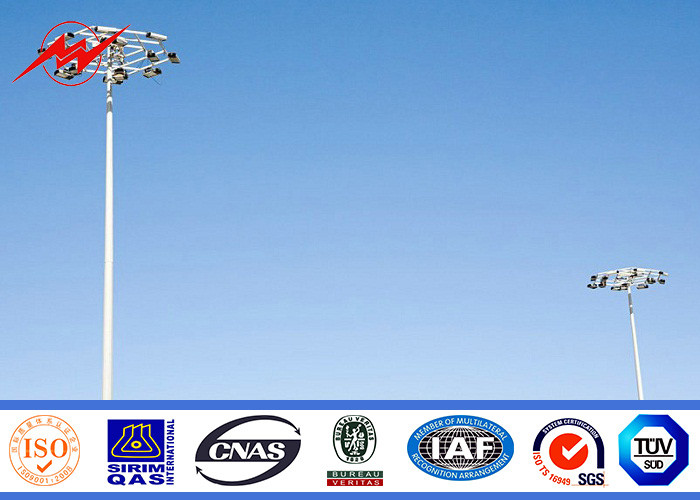

More Photos:
