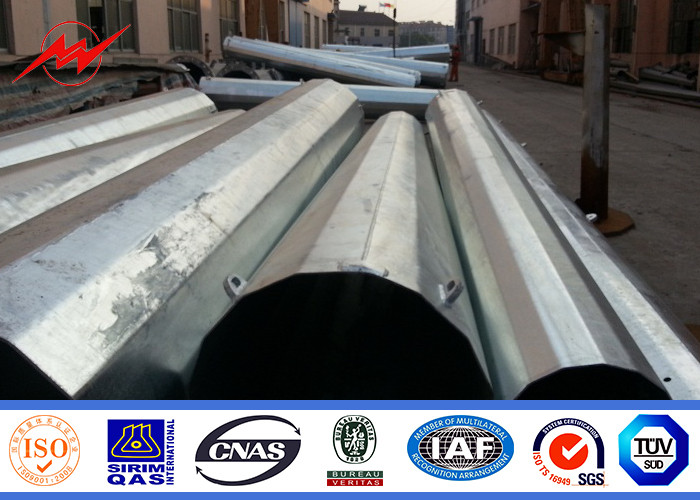

Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

1 pcs
MOQ
Anlaşılabilir
fiyat
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Product Name: Steel Electric Power Poles
Application: Power Distribution
Surface treatment: galvanization powder coating
Welding standard: AWS D 1.1
Galvanization standard: ASTM A 123
Lift time: 50 years
Warranty: 15 years
Vurgulamak:

metal power poles

,

electric utility poles
Temel bilgiler
Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/
Model Number: Steel Electric Power Pole
Ödeme & teslimat koşulları
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Ürün Açıklaması

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission





 Specification:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56







 Description:


 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

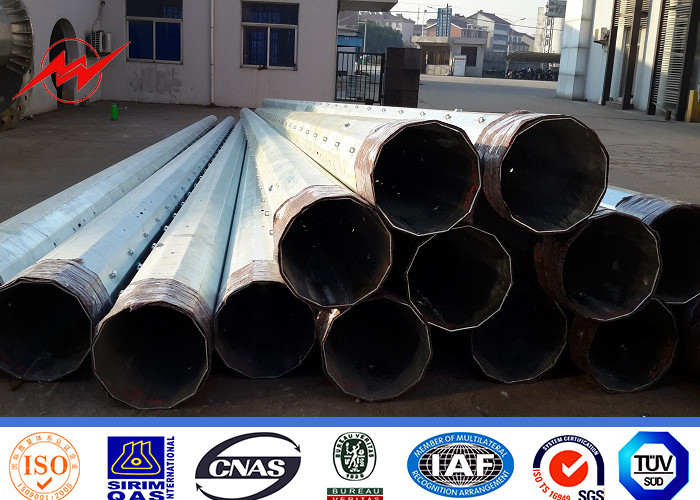

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission 0





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

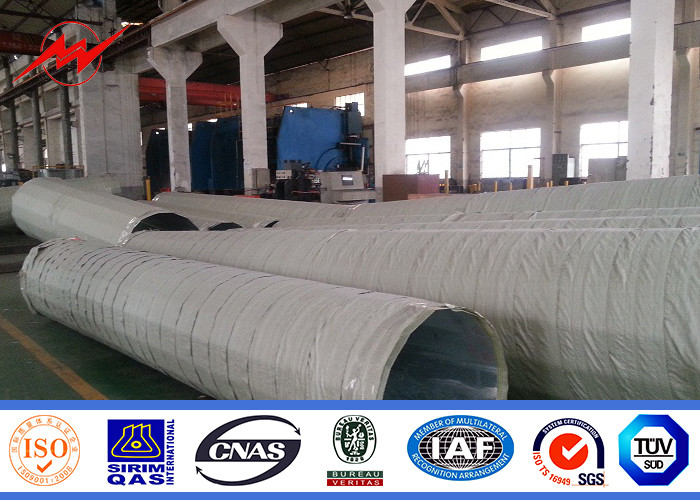

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission 1





 More Photos:

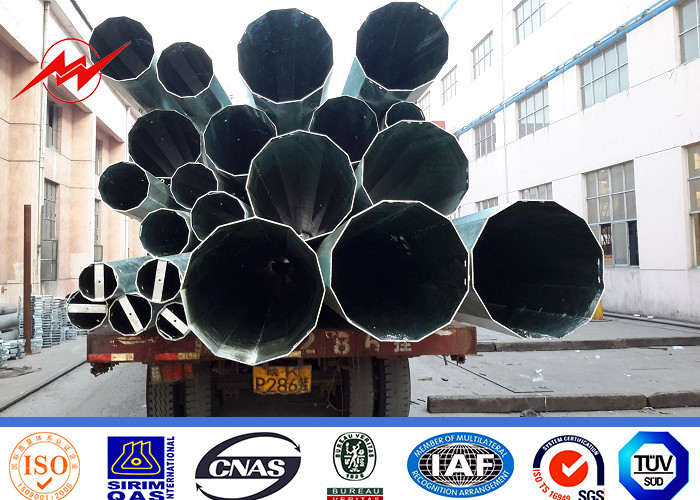

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission 2
