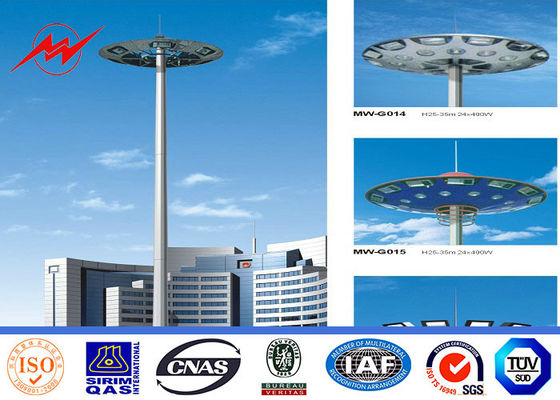

Q345 HDG 35M 48 Lamps Steel Square Light Poles 15 Years Warranty Time

1 pcs
MOQ
Anlaşılabilir
fiyat
Q345 HDG 35M 48 Lamps Steel Square Light Poles 15 Years Warranty Time
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Product Name: High Mast Tower
Application: Parking Lot Lighting
Torlance of dimenstion: +-0.02
Galvanization Thickness: Average 86μm
Thickness: 1 mm to 36 mm
Warranty time: 15 years
Vurgulamak:

mast light tower

,

güneş enerjisi ışık direği
Temel bilgiler
Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/
Model Number: High Mast Light
Ödeme & teslimat koşulları
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Ürün Açıklaması

 Q345 HDG 35M 48 Lamps Steel High Mast Tower with Square Lamp Panel





 Specifications:



Specification:

20-50 meters high mast pole

Type

high mast pole

Shape

conical, hexagonal and octagonal

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65,

GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester

power or any other standard by client required.

Standard

Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

high mast pole suit for

city square,wharf,stadium

Option of high mast pole

Height from 20m to 35m
Flange mounted or planted type

Production Process of high mast pole

Raw material test → Cutting →Molding or bending

→Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder

coating ,painting →Recalibration→Thread →Packages





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-  shaped vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Q345 HDG 35M 48 Lamps Steel Square Light Poles 15 Years Warranty Time 0





 Production Process

 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

 Q345 HDG 35M 48 Lamps Steel Square Light Poles 15 Years Warranty Time 1





Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

Q345 HDG 35M 48 Lamps Steel Square Light Poles 15 Years Warranty Time 2





 Company instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.
