Octagonal Double Circuit Electrical Galvanized Steel Pole Approved

one 40 HQ
MOQ
Anlaşılabilir
fiyat
Octagonal Double Circuit Electrical Galvanized Steel Pole Approved
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
güç: 10kV ~ 550kv
Rüzgar hızı: 160km / s, 30m / s
Kalınlık: 1mm ila 30mm
Kaynak standardı: AWS D1.1
Hata payı: +/-% 2
Tasarım yükü (kg): Kutuptan 50 cm'ye 300 ~ 1000 Kg uygulandı
Vurgulamak:

galvanizli metal direk sekizgen

,

galvanizli metal direk

,

sekizgen galvanizli metal direk

Temel bilgiler
Place of Origin: China
Marka adı: Milky Way
Sertifika: /BV/ISO
Model Number: Octagonal double circuit electrical Galvanized Steel pole for transmission pole
Ödeme & teslimat koşulları
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Ürün Açıklaması

Octagonal double circuit electrical Galvanized Steel pole for transmission pole





Specification:



1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc

2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.

3) Finish: Hot-dip galvanized in accordance with ASTM A123.

4) Pole Height: All available

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc

6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)

7) Surface hot-dip-galvanized & painting

8) Resistant: against earthquake of 8.8 grade. Wind speed as design.

9) Quality Standard: ISO9001:2000,AAA credit rating

10) Easy install and maintenance

11) Packages: Normally covered by sack or as customer’s requirement.

12) Voltage:10-550KV





Material:

high quality Q235 hot rolled steel

Mounting Height:

3-30m or according to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine



Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating:

Pure polyester powder painting, color is optional





Features & Advantage



1 High intensity, high resistance of shock or vibration

2 High efficiency up to 85%, 110lm/watt

3 Low illumination attenuation, 3% - 5% degradation/1kh

4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.

5 Excellent heat dispersion, and low power consumption.

6 Easy installation, free maintanence.

7 High Power Factor: 0.85

8 No UV radiation

9 No mercury or other inorganics

10 Constant current to guarantee long life

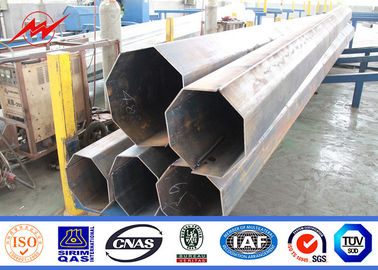

Octagonal Double Circuit Electrical Galvanized Steel Pole Approved  0





Our Services



1. Quick reply within 24 hours.

2. Convenient and smooth communication.
3. Detailed and professional specifications and guidances of products.
4. Lighting solutions by professional technician.

5. Fast &Cheap Delivery.

6. Free Light study.

7. Various Certificates.

8. Product Update.

9. OEM&ODM available.

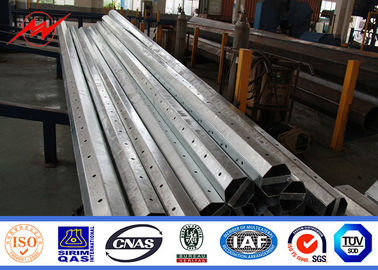

Octagonal Double Circuit Electrical Galvanized Steel Pole Approved  1
