Hdg 9m Galvanizli Sokak Işık Direği Çapraz Kollu Toz Boya

Büyük resim : Hdg 9m Galvanizli Sokak Işık Direği Çapraz Kollu Toz Boya

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	MilkyWay
Sertifika:	ISO9001/BV/
Model Number:	Street Light Poles

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 pcs
Fiyat:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

İletişim

Detaylı ürün tanımı

Ürün adı:	Sokak Aydınlatma Direkleri	Güç kaynağı:	Güneş / AC
Kaynak standardı:	AWS D 1.1	Malzeme:	Q345
Ömür:	50 yıl	Dimenstion torlance:	+ -% 2
Bitiş:	HDG
Vurgulamak:	hdg galvanizli sokak aydınlatma direği , 9m galvanizli aydınlatma direği , 9m galvanizli sokak aydınlatma direği

HDG 9m Outdoor Street Light Poles Powder Coating with Cross Arms

Specifications:

Height	From 3 meter to 15 meter
Suit for	Airport, seaport, roadway, etc
Shape	Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Material	Q235B or Q345 by , same grade EN44 .SS400
Tolerance of the dimension	According to client’s requirement.
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester powder or any other standard by client required.
Joint of Poles	Slip joint, flanged connected
Base plate mounted	Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Wind Resistance	Aganist wind pressure of 160Km/h
Certificates	ISO 9001:2008
Length of per section	Within 14 meter once forming
Welding Standard	AWS (American Welding Society ) D 1.1
Thickness	1 mm to 36mm
Production Process	Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Packages	Packing with plastic paper or according to client’s request.

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

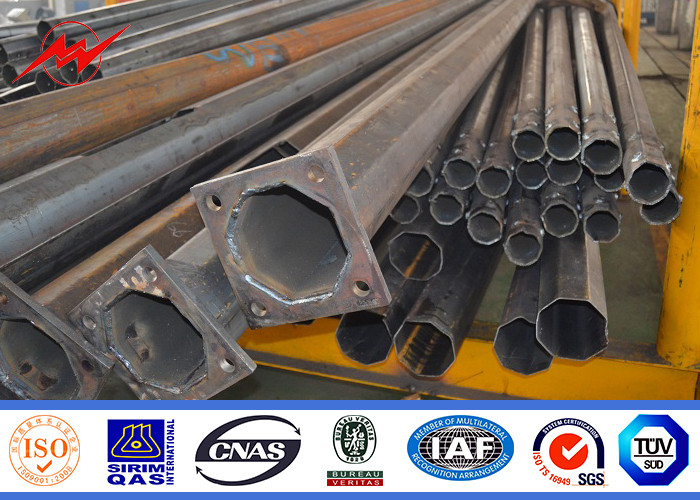

Hdg 9m Galvanizli Sokak Işık Direği Çapraz Kollu Toz Boya 0

Package:

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

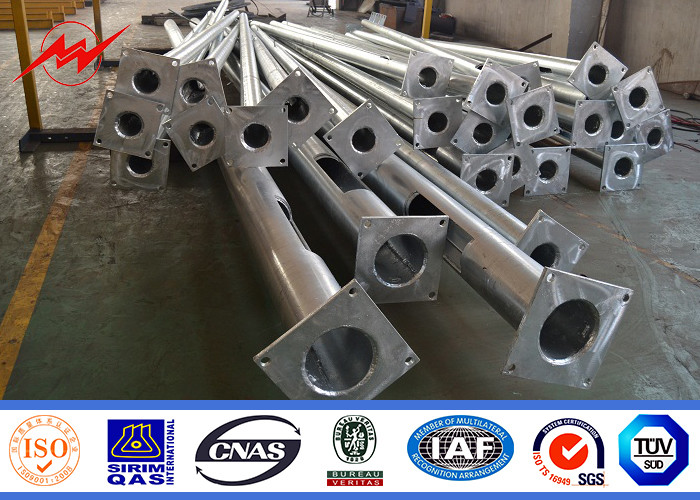

Hdg 9m Galvanizli Sokak Işık Direği Çapraz Kollu Toz Boya 1
