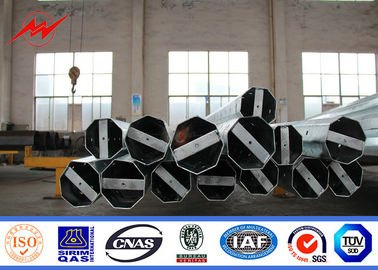

Havai Hat Projesi için 30 Ft 3mm NEA Galvanizli Çelik Elektrik Direği

one 40HQ
MOQ
Anlaşılabilir
fiyat
Havai Hat Projesi için 30 Ft 3mm NEA Galvanizli Çelik Elektrik Direği
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Kalınlık: 1mm ila 30mm
şekil: Konoid, Çok piramidal, Koloniform, poligonal veya konik
güç: 10kV ~ 550kv
İçin uygun: Elektrik dağıtımı
Rüzgar hızı: 160km / s, 30m / s
Kaynak standardı: AWS D 1.1
Vurgulamak:

nea galvanizli çelik elektrik direği

,

3MM galvanizli çelik elektrik direği

,

30 ft galvanizli çelik elektrik direği

Temel bilgiler
Place of Origin: China
Marka adı: Milky Way
Sertifika: ISO//BV
Model Number: 30ft 3mm NEA galvanized electrical power pole for overheadline project
Ödeme & teslimat koşulları
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Ürün Açıklaması

30ft 3mm NEA galvanized electrical power pole for overheadline project



Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.









Galvanization



Standard: NFA91121

Average thickness of the galvanization: Not less than 70

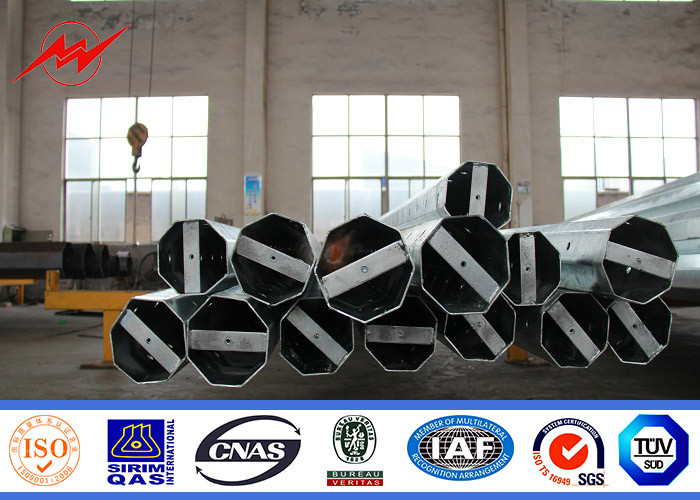

Havai Hat Projesi için 30 Ft 3mm NEA Galvanizli Çelik Elektrik Direği 0



Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Standard Accessory



- Top plate

- Base plate

- Bottom Strip

- Standard Hole

- Climbing Rung

- Anchor bolt

- Bitumen Protection
- Painted Marking

- Removable Ladder

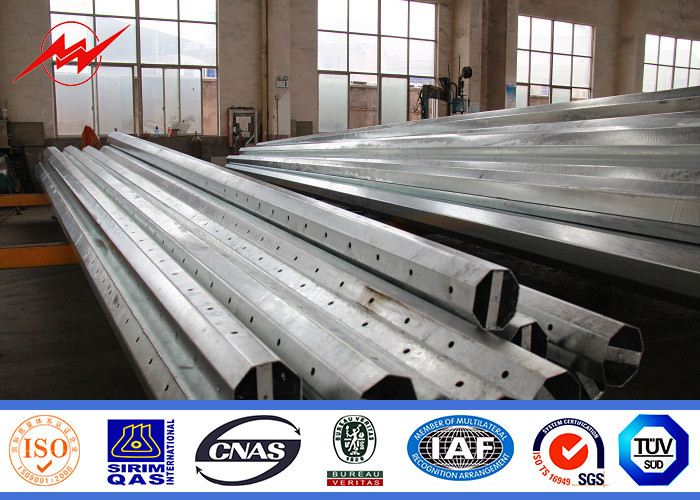

Havai Hat Projesi için 30 Ft 3mm NEA Galvanizli Çelik Elektrik Direği 1



The information to inquiry or purchase



- Steel pole height and force

- Cross arm type and length, the position to install in the steel pole

- The method to fix the cross arm (use Bolt to connect or use one or two   template to weld in the steel pole to install the cross arm)

- Safety factor of the steel pole

- Wind speed

- Type of climbing rung

- Destination port

- Others

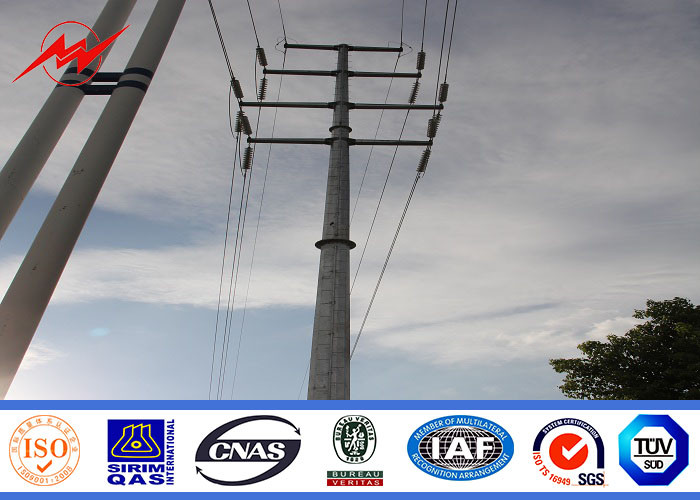

Havai Hat Projesi için 30 Ft 3mm NEA Galvanizli Çelik Elektrik Direği 2
