18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower

Büyük resim : 18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower

Ürün ayrıntıları:

Menşe yeri:	Jiangsu, Çin
Marka adı:	MilkyWay
Model numarası:	Çelik elektrik direkleri, elektrik direği

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100
Fiyat:	$99-120

İletişim

Detaylı ürün tanımı

Değerlendirilmiş Akım:	10-200	Nominal Voltaj:	10-220
Yüzey tedavisi:	Sıcak Daldırma Galvaniz	Boyut Toleransı:	+- %2
Minimum akma dayanımı:	355 mpa	Asgari Çekme Dayanımı:	490 MPa
Maksimum Çekme Dayanımı:	620 mpa	bölüm başına uzunluk:	14m içinde
Kalınlık:	1 mm ila 30 mm	Güç aralığı:	10 KV ~550 KV
Tasarım yükü:	300 ~ 1000 kg	Rüzgar hızı:	160 Km/Saat
Deprem direnci:	8. Sınıf	Emniyet faktörü:	8
Üretim kapasitesi:	günde 300 Adet
Vurgulamak:	18m Steel Utility Power Pole , 33kV Transmission Line Tower , Q235 Material Electrical Power Pole

18m Steel Utility Power Poles for 33kV Transmission Line Tower

High-quality steel power poles made from Q235, Q345, and Q420 materials, designed for 33kV transmission lines with superior durability and performance.

Product Specifications

Type	Octagonal NGCP 69KV Galvanized electric steel power pole
Application	Electricity distribution
Shape	Conoid, Multi-pyramidal, Columniform, polygonal or conical
Material	Q345B/A572 (minimum yield strength ≥345n/mm²), Q235B/A36 (minimum yield strength ≥235n/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Power Range	10KV ~550KV
Safety Factor	8 for conducting wire, 8 for grounding wire
Design Load	300~1000Kg applied 50cm from top pole
Surface Treatment	Hot dip galvanized (ASTM A 123), color polyester powder, or client-specified standard
Wind Speed Rating	160 Km/Hour (30 m/s)
Seismic Rating	Earthquake resistant to 8 grade
Standard	ISO 9001

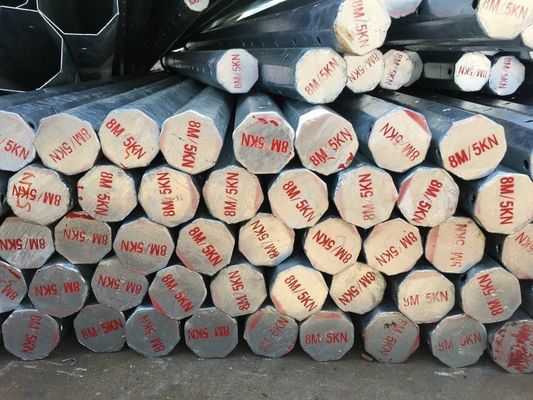

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 0

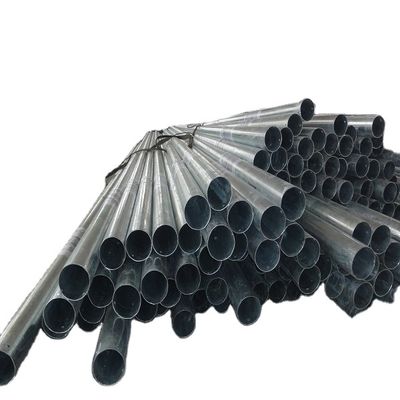

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 1

Production Process

As a BV, ISO, SGS approved supplier in China, we have more than 20 years experience producing and exporting steel poles. We guarantee the quality of our poles, which are made from qualified materials by professional workers using advanced equipment.

Our production process includes:

Raw material testing
Cutting
Molding or bending
Welding (longitudinal)
Dimension verification
Flange welding
Hole drilling
Calibration
Deburring
Galvanization or powder coating/painting
Recalibration
Threading
Packaging

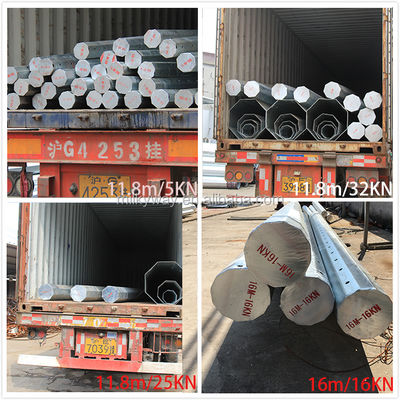

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 2

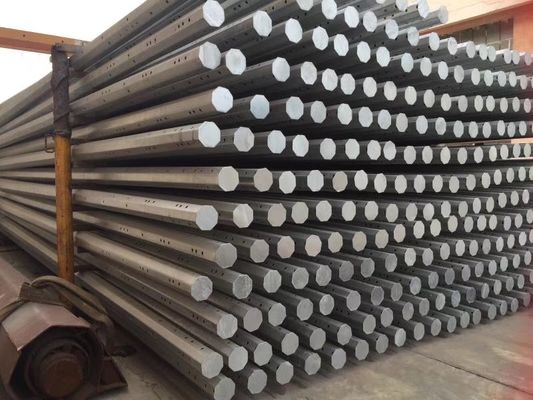

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 3

Material Quality Assurance

All materials are purchased from reputable mill factories to ensure quality. A mill certificate with stamp and signature is required before unloading materials at our factory. All materials undergo chemical and physical analysis before production to verify strength and composition meet requirements.

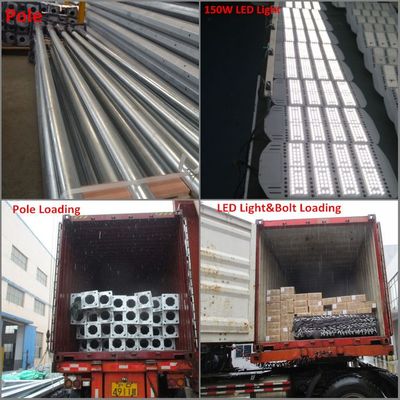

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 4

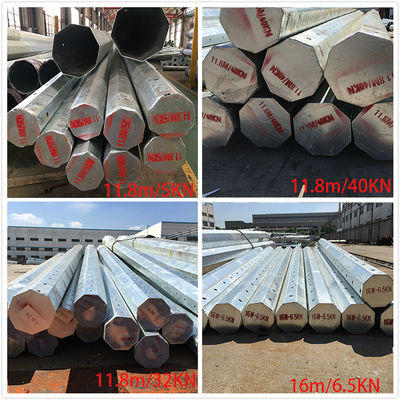

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 5

Certifications

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 6

Project Images

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 7

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 8

Ordering Information

Price Term: EXW, FOB, CFR or CIF
MOQ: 1 set for customized orders
Payment: 30% T/T deposit, balance before shipment
Delivery Time: 10 workdays after deposit
Warranty: 30 years
Surface Treatment: Hot dip galvanization

Our Services

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 9

Pre-Sales Service

Inquiry and consulting support
Response within 24 working hours
Factory visits available

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 10

After-Sales Service

Installation training
Inspection reports and mill certificates provided
Tensile test documentation

Packaging & Delivery

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 11

18m 33kV Steel Utility Power Pole with Q235 Material for Transmission Line Tower 12

Packaging Type	Quantity
40&45FT Electric poles for Philippine Market	26 Tons/40HQ Containers
35FT Electric poles for Philippine Market	26 Tons/40HQ Containers

Our Company

Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, East China, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and lighting for streets, roads, squares, and stadiums.

With extensive export experience since our first overseas order to Pakistan in 1991, our products have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
