Dodecagonal 69KV Galvanized Tubular Steel Pole 95FT AWS D1.1 For Philippine

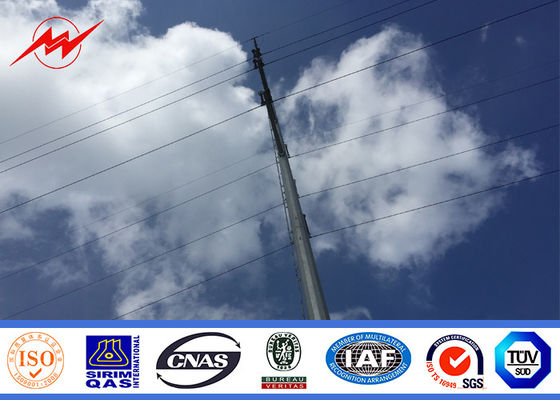

Büyük resim : Dodecagonal 69KV Galvanized Tubular Steel Pole 95FT AWS D1.1 For Philippine

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	MilkyWay
Sertifika:	ISO9001/BV/
Model Number:	Steel Tubular Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 pcs
Fiyat:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

İletişim

Detaylı ürün tanımı

Product Name:	Steel Tubular Pole	Application:	Power Transmission
Welding standard:	AWS D1.1	Surface Treatment:	Hot Dip Galvanized Powder Painting
Material:	Gr65	Power:	110KV
Vurgulamak:	floodlight pole , commercial light poles

Dodecagonal 69KV Galvanized 95FT Steel Tubular Pole for Philippine

Specifications:

Types Length	45ft	50ft	55ft	60ft	65ft	70ft
Types Length	13.75m	15.25m	16.80m	18.30m	19.85m	21.35m
B ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	345	370	395	415	435	455
Thickness (mm)	6	6	6	6	6	6
E ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	545	585	625	660	700	740
Thickness (mm)	6	6	6	6	6	6
C ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	600	645	690	730	770	805
Thickness (mm)	6	6	6	6	6	6
D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	680	730	725	765	755	790
Thickness (mm)	6	6	7	7	8	8
HS ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	340	360	385	400	420	440
Thickness (mm)	6	6	6	6	6	6
HT ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	485	520	550	580	615	645
Thickness (mm)	6	6	6	6	6	6
3T ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	520	540	565	595	615	640
Thickness (mm)	6	6	6	6	6	6
3D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	585	620	650	680	715	765
Thickness (mm)	6	6	6	6	6	6

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

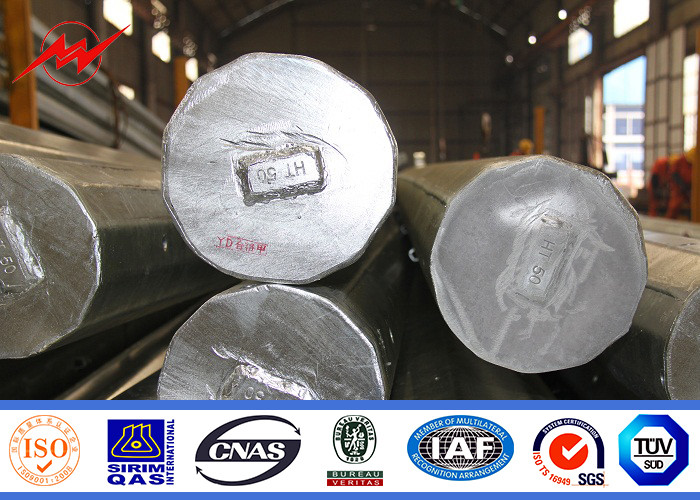

Dodecagonal 69KV Galvanized Tubular Steel Pole 95FT AWS D1.1 For Philippine 0

Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.

Trade Terms:

1. Payment:(1)Telegraphic Transfer(30% advance payment, balance before shipment)

(2)Telegraphic Transfer(30% advance payment, balance against copy of documents)

(3)Letter of Credit: at sight

2. Lead Time: 2 weeks after confirmed order

3. Delivery way: by sea

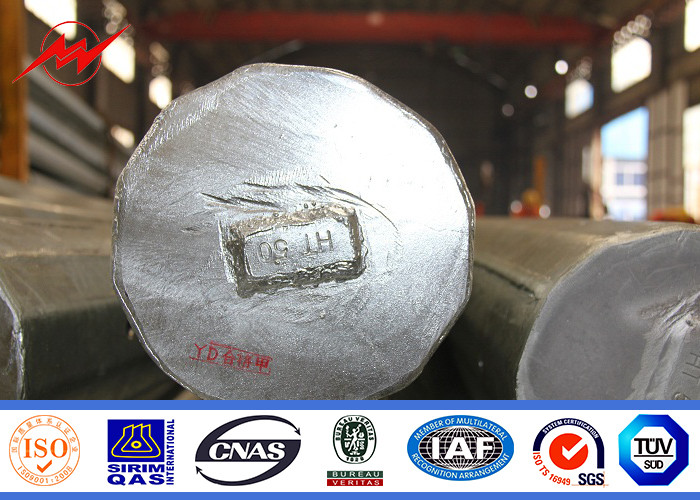

Dodecagonal 69KV Galvanized Tubular Steel Pole 95FT AWS D1.1 For Philippine 1
