|Product Name:||Galvanized Steel Power Pole||Application:||Power Line|
|Thickness:||1 mm to 36mm||Tolerance of the dimension:||+-2%|
|Life time:||50 years||Material:||Q345|
power distribution poles,
steel power poles

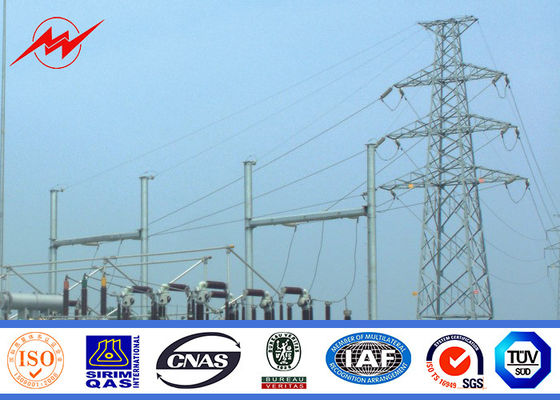

BV Certification 20M Galvanized Steel Pole Steel Power Poles for Power Transmission
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
|Suit for||Electricity distribution|
|Shape||Conoid ,Multi-pyramidal,Columniform,polygonal or conical|
|Material||Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
|Torlance of the dimenstion||+- 2%|
|Power||10 KV ~550 KV|
|Safety Factor||Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
|Design Load in Kg||300~ 1000 Kg appliced to 50cm from the to pole|
|Marks||Nane palte through rivert or glue ,engrave ,emboss as per customer requirement|
|Surface treatment||Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
|Joint of Poles||Insert mode,innerflange mode,face to face joint mode|
|Design of pole||Against earthquake of 8 grade|
|Wind Speed||160 Km/Hour . 30 m /s|
|Minimum yield strength||355 mpa|
|Minimum ultimate tensile strength||490 mpa|
|Max ultimate tensile strength||620 mpa|
|Length of per section||Within 14m once forming without slip joint|
|Welding||We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|Thickness||1 mm to 30 mm|
|Production Process||Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

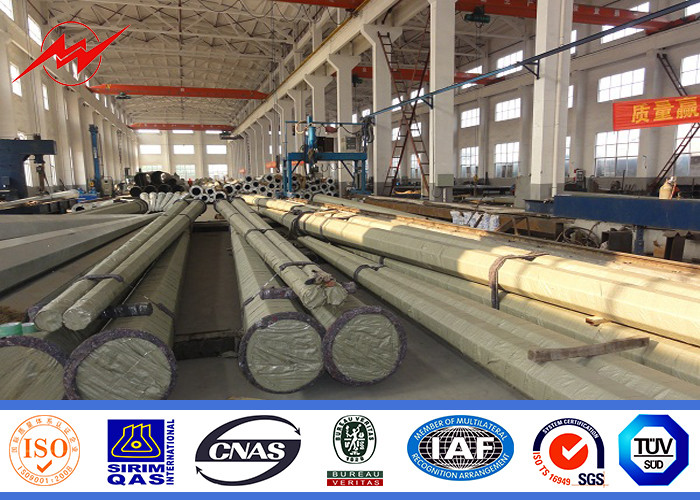

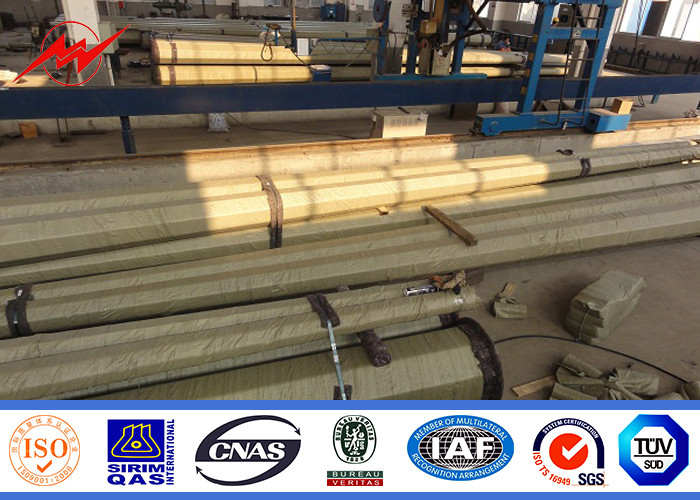

|Packages||Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.
Average thickness of the galvanization:Not less than 86μm.
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
