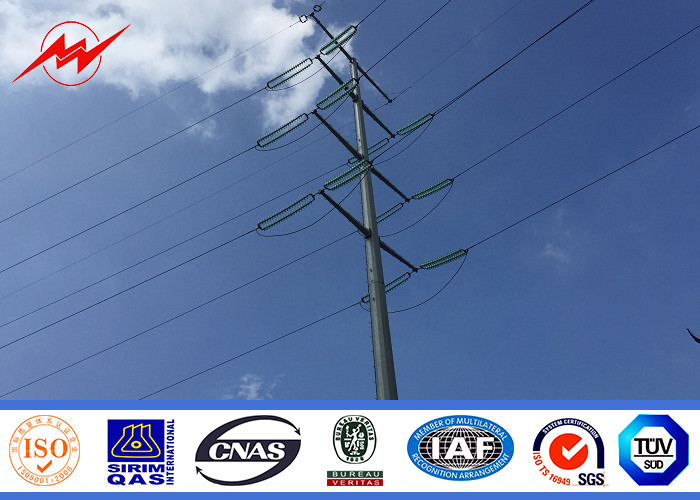

20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission

Büyük resim : 20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	MilkyWay
Sertifika:	ISO9001/BV/
Model Number:	Steel Utility Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 pcs
Fiyat:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

İletişim

Detaylı ürün tanımı

Product Name:	Steel Utility Pole	Application:	Power Transmission
Galvanization Thickness:	Average 70μm	Standard:	ISO
Design:	Customized	Max ultimate tensile strength:	620 mpa
Welding standard:	AWS D 1.1
Vurgulamak:	metal utility poles , electric telescoping pole

20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission

Specifications:

Suit for	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of the dimenstion	+- 2%
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Minimum yield strength	355 mpa
Minimum ultimate tensile strength	490 mpa
Max ultimate tensile strength	620 mpa
Standard	ISO 9001
Length of per section	Within 14m once forming without slip joint
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending → Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom , anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Material
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

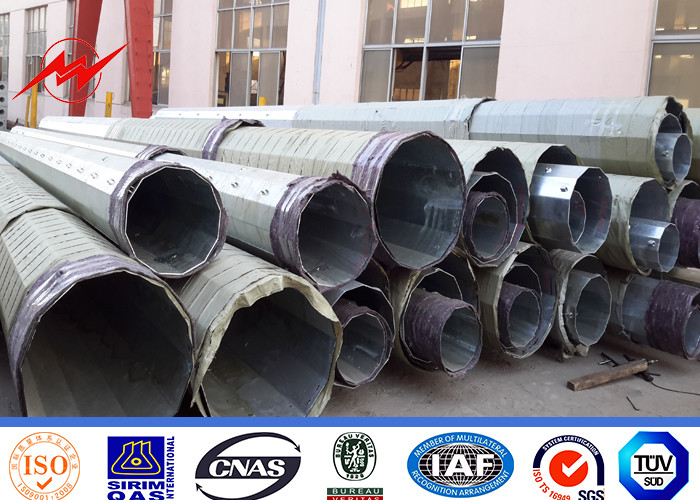

20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission 0

Design:

We have our standard pole with our design, OEM and ODM is also accpetable

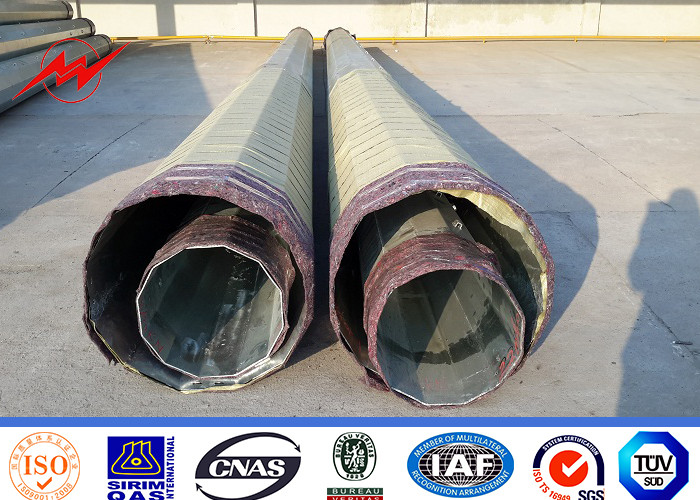

20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission 1

Company Introduction:

Our development is based on quality, which allows us to always be able to stand ahead of the industry. In 1995, because of the introduction of the ISO9001 quality management system, our product quality has been further increased and guaranteed. We have advanced testing equipment and experienced technical engineers. This gives us continuously improve product quality to meet customer needs. Based on product characteristics, we divide the inspection into four phases: raw materials inspection, production process inspection, finished product inspection and regular inspection. Ours Qc have been engaged in quality work for a long time and they consists of our quality deapartment . We implement the ISO9001 completely in during the process of productiong , proposed a concept. " the best way to return customers is to provide high-quality product" !

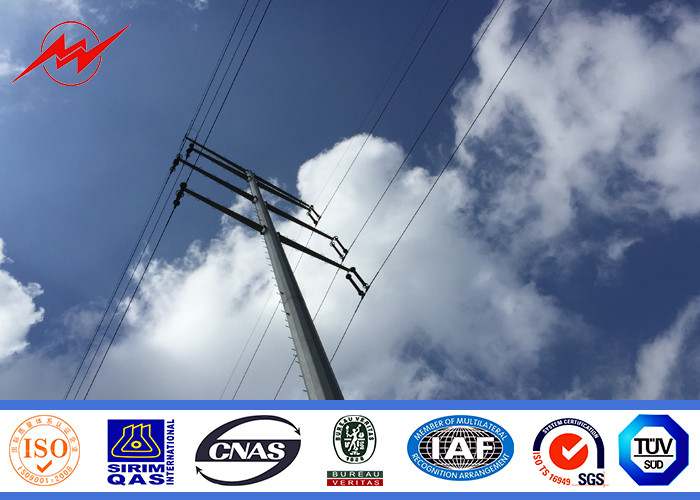

20M 12KN 4mm Steel Utility Pole for Electrical Power Transmission 2
