Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

Sertifika
Çin Jiangsu milky way steel poles co.,ltd Sertifikalar
Çin Jiangsu milky way steel poles co.,ltd Sertifikalar
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

Ben sohbet şimdi

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

Çin Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi
Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w Tedarikçi

Büyük resim :  Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w

Ürün ayrıntıları:

Place of Origin: Yixing,Jiangsu,China
Marka adı: Milky Way
Sertifika: ISO9001
Model Number: Street Light Poles

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 Poles
Fiyat: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
İletişim
Detaylı ürün tanımı
Code: Street Light Poles Thickness: 2.5mm to 20mm
Light Wattage: 30w to 120w Arm Type: single arm or twin arms
Surface Treatment: galvanization and powder coating Pole Shape: Round,octagonal
Average gavanzation thickness: according to the pole thickness
Vurgulamak:

street lighting poles

,

galvanized street light pole

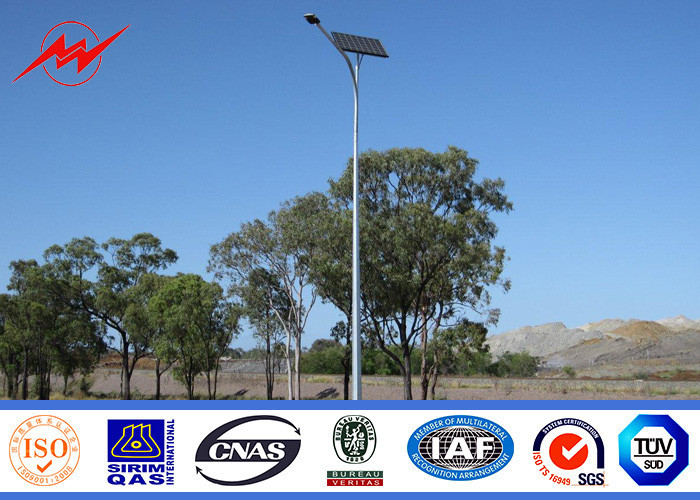

7m height solar street light poles galvanized for street highway lighting



Quick Details for Street Lighting Pole



Item No

7M solar street light poles

Height

7m

Thickness

2.5mm to 30mm

Shape

Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Wind Design

32 m/s

Suit for

street way,Airport,seaport,plaza,stadium,square,highway





Quick Information



Material: Steel, Q235,

Hot-Dip Galvanized. Plastic Coated, Rust Proof,

With Arm , Bracket, Flange, Fittings, Cable, Etc

Resistant to Wind: ≥150KM/H

Lifespane: 20-25years



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w 0

FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





SHAPE



1.Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.



2.Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.

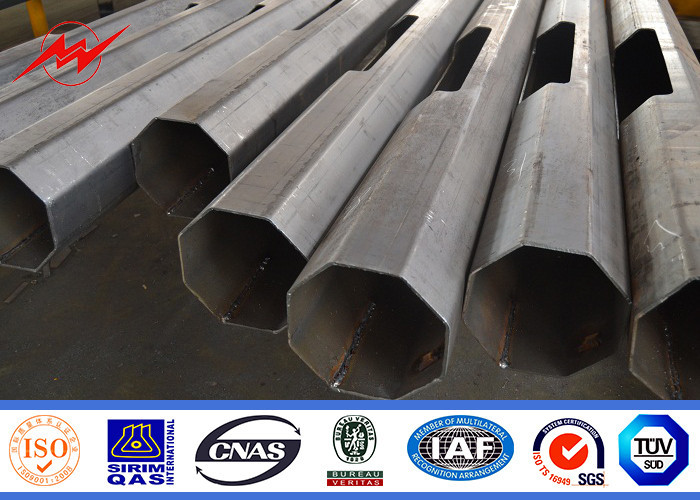

3.Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.

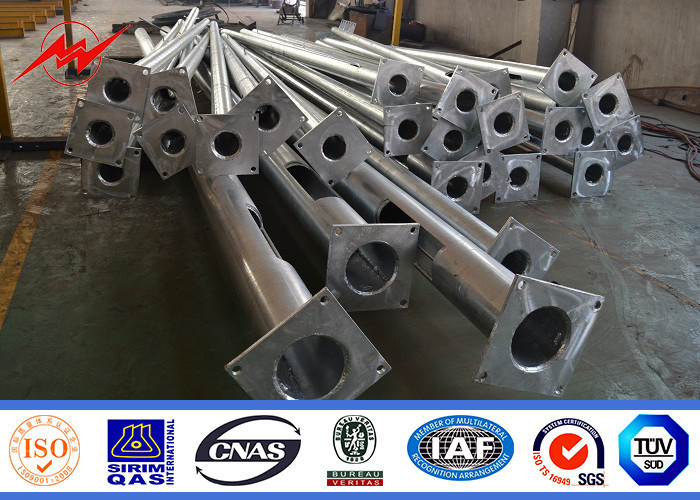

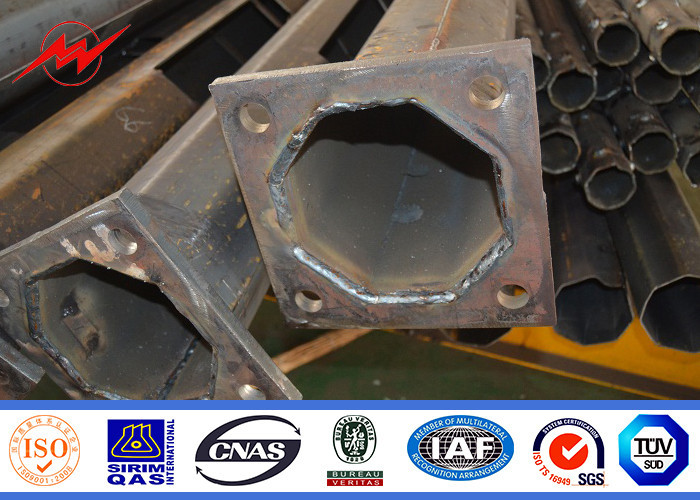

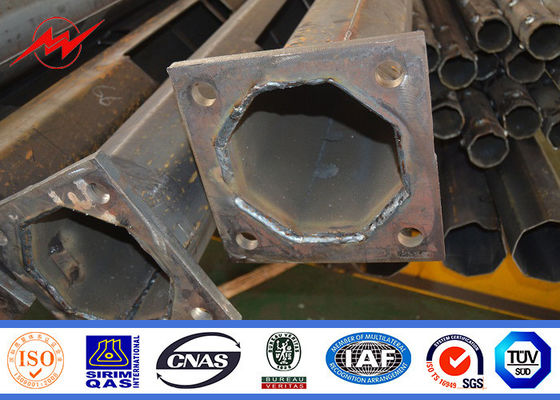

4.Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.

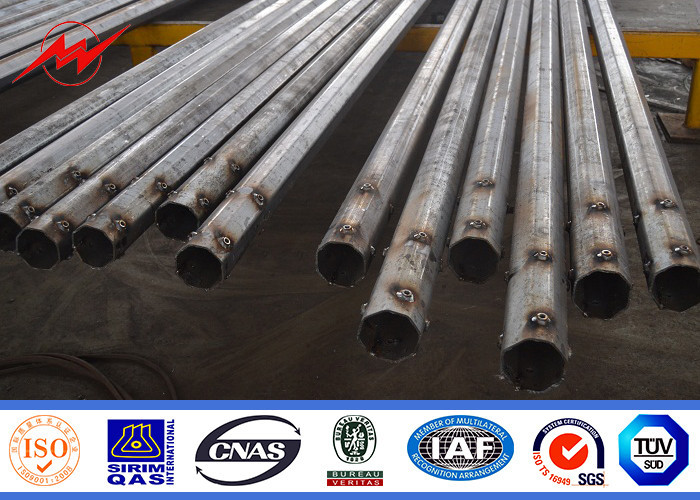

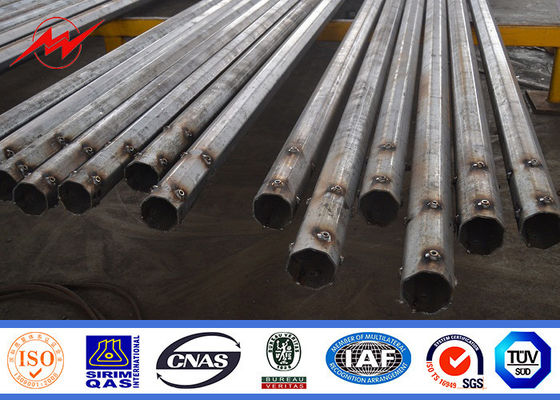

5.Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.



6.Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.



7:Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.



8.Lamp:LED light is available or specified in the customer requirement.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w 1



Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.

Hot - Dip Galvanized Engineering steel Street Light Poles 12M 30w 120w 2
