Yüksek Kalitede Hizmet Vermekteyiz
Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Product Name: | Steel Utility Pole | Application: | Electrical Power Distribution |
|---|---|---|---|
| Quality Control: | ISO 9001 | Welding Standard: | AWS (American Welding Society ) D 1.1 |
| Surface treatment: | Hot Dip Galvanization | Design: | Customized |
| Vurgulamak: | electrical power poles,electrical transmission poles |
||
Grade One Polygonal 9m Steel Utility Pole for Electrical Transmission With Bitumen
Specifications:
| series | Outside Diametar | Wall Thicness | Plain and Tubes | |
| mm | Min. | mm /SWG | Kg./M | Mtrs./Ton |
| 15 L | 21.3 | 2 | 0.947 | 1058 |
| M | 2.6 | 1.21 | 826 | |
| H | 3.2 | 1.44 | 694 | |
| 20 L | 26.9 | 2.3 | 1.38 | 725 |
| M | 2.6 | 1.56 | 641 | |
| H | 3.2 | 1.87 | 535 | |
| 25 L | 33.7 | 2.6 | 1.98 | 505 |
| M | 3.2 | 2.41 | 415 | |
| H | 4 | 2.93 | 341 | |
| 32 L | 42.4 | 2.6 | 2.54 | 394 |
| M | 3.2 | 3.1 | 323 | |
| H | 4 | 3.79 | 264 | |
| 40 L | 48.3 | 2.9 | 3.23 | 310 |
| M | 3.2 | 3.56 | 281 | |
| H | 4 | 4.37 | 229 | |
| 50 L | 60.3 | 2.9 | 4.08 | 245 |
| M | 3.6 | 5.03 | 199 | |
| H | 4.5 | 6.19 | 162 | |
| 65 L | 76.1 | 3.2 | 5.71 | 175 |
| M | 3.6 | 6.42 | 156 | |
| H | 4.5 | 7.93 | 126 | |
| 80 L | 88.9 | 3.2 | 6.72 | 149 |
| M | 4 | 8.36 | 120 | |
| H | 4.8 | 9.9 | 101 | |
| 90 L | 101.6 | 3.6 | 8.7 | 115 |
| M | 4 | 9.63 | 144 | |
| H | 4.8 | 11.5 | 87 | |
| 100 L | 114.3 | 3.6 | 9.75 | 103 |
| M | 4.5 | 12.2 | 82 | |
| H | 5.4 | 14.5 | 69 | |
| 110 L | 127 | 4.5 | 13.6 | 74 |
| M | 4.8 | 14.5 | 69 | |
| H | 5.4 | 16.2 | 62 | |
| 125 L | 139.7 | 4.5 | 15 | 67 |
| M | 4.8 | 15.9 | 63 | |
| H | 5.4 | 17.9 | 56 | |
| 135 L | 152.4 | 4.5 | 16.4 | 61 |
| M | 4.8 | 17.5 | 57 | |
| H | 5.4 | 19.6 | 51 | |
Technical information-Cross Arm
The followed listed is the most frequently used design,and is made from angel steel.And the cross arm will be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and the pole shaft.If you have any other requirements on the design,material and connecting method for cross arm,pls contact us.

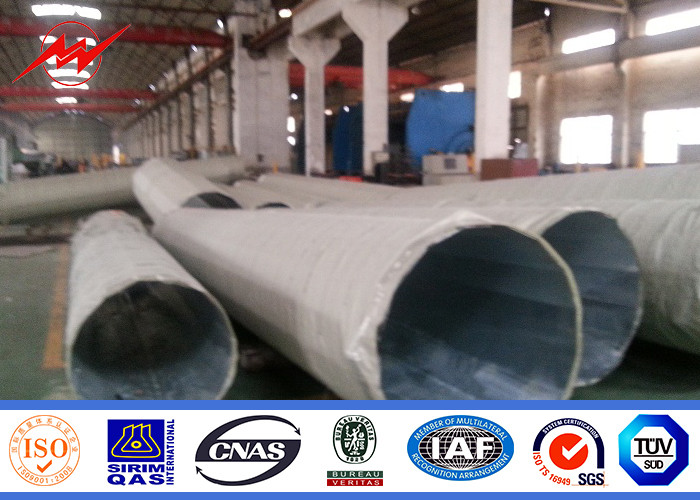

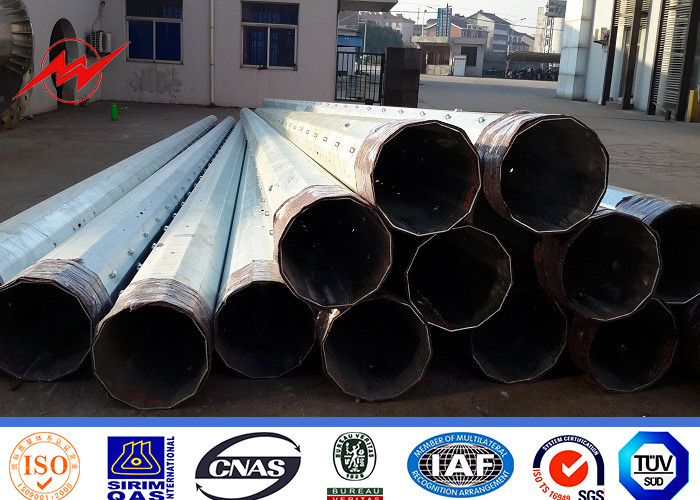

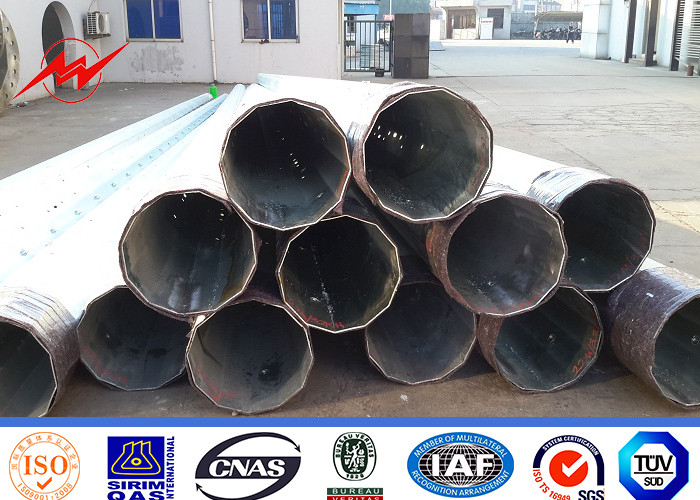

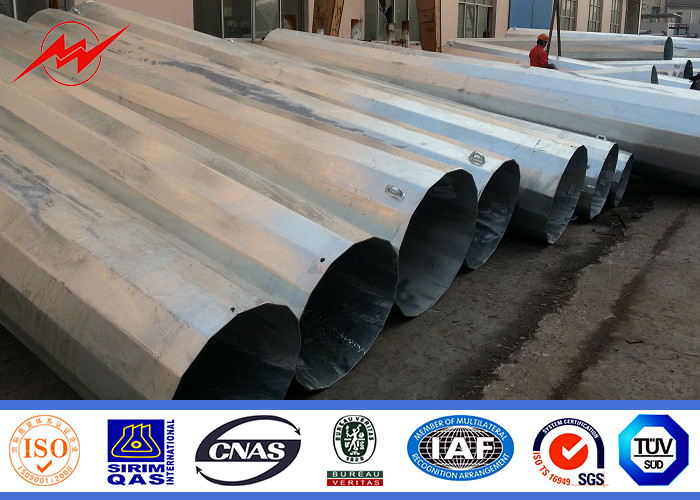

More Pictures:
Company Introduction:
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.
