CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device

Çin CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device Tedarikçi
CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device Tedarikçi CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device Tedarikçi CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device Tedarikçi CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device Tedarikçi

Büyük resim :  CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device

Ürün ayrıntıları:

Place of Origin: China
Marka adı: Milky Way
Sertifika: CE,UL467,ISO9001:2008
Model Number: ground rod

Ödeme & teslimat koşulları:

Minimum Order Quantity: 10 pieces
Fiyat: US $0.1-5 per piece
Packaging Details: Nylon Or Wooden cases Or container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 tons per month
İletişim
Detaylı ürün tanımı
Product name: Ground rod Material: Copper clad steel
Type: Threaded or flat or pointed Usage: Underground
Copper layer thickness: 0.254mm, 0.33mm, 0.5mm, 1.0mm Application: Lightning protection
Elongation: 8%-15% Straightness: <1mm/m
Vurgulamak:

copper bonded ground rod

,

copper clad ground rods

CE,UL467,ISO9001:2008 copper clad steel ground rod with ground rod accessories



Specifications:

Copper Ground Rod using special electro forming technology, plating 99.9% pure copper uniformly

to the high quality low carbon steel core, through cold drawn process,  to make tensile strength stronger, and maintaining toughness, with thick copper, well agglutination and so on. Have constant low

resistance and good plasticity, both with the same electrical conductivity of copper and also have the steel characteristics. Conventional copper layer thickness is 0.254mm, 0.33mm, 0.5mm, 1.0mm.



Model

Diameter(mm)

Copper Thickness(mm)

Screw Thread

Length Range(m)

YH-A001

12.7

≥0.25

9/16

1—3

YH-A002

14.2

≥0.25

M16

1—3

YH-A003

16

≥0.25

M18

1—3

YH-A004

17

≥0.25

3/4

1—3

YH-A005

18

≥0.25

M20

1—3

YH-A006

20

≥0.25

M22

1—3

YH-A007

22

≥0.25

M24

1—3





Description:

Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion resistance, tensile strength, low prices, etc.,

Copper bonded ground rod can be widely used, and have been recognized by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and International Electrotechnical Commission (IEC) standards.

In China, have been recognized in China Sinopec, China National Petroleum, the national electricity company, and gradually be widely used.

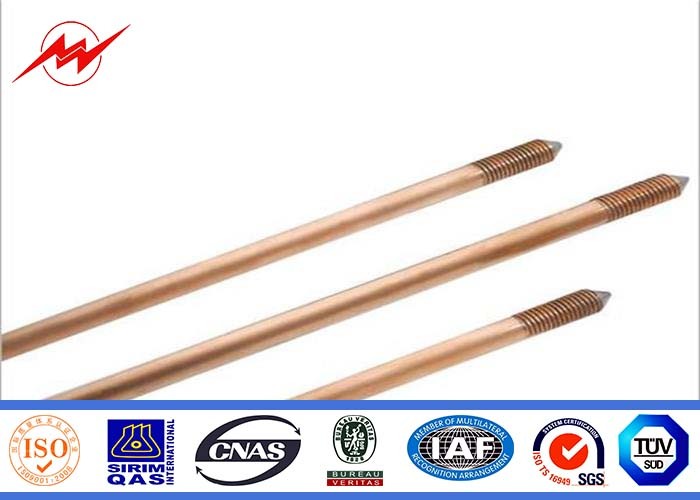

CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device 0



Packaging & Shipping:

Strong packing is available and free of charge ,which is suitable for loading, storage in most popular

condition .Custom packing will be charged reasonably to favor customer’s requirement .

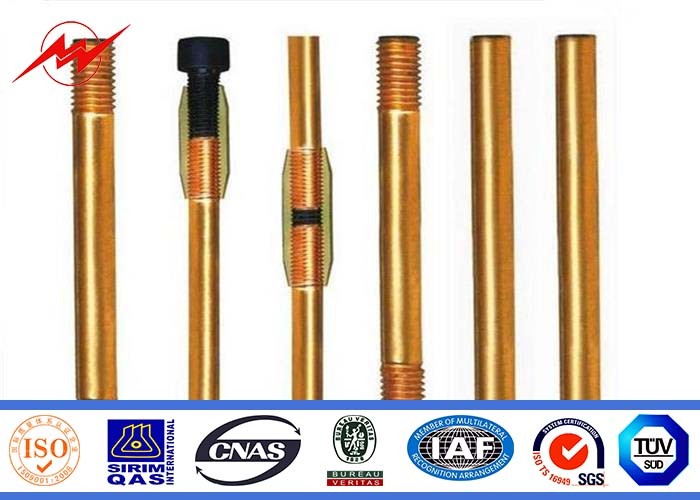

CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device 1



Company introduction:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.

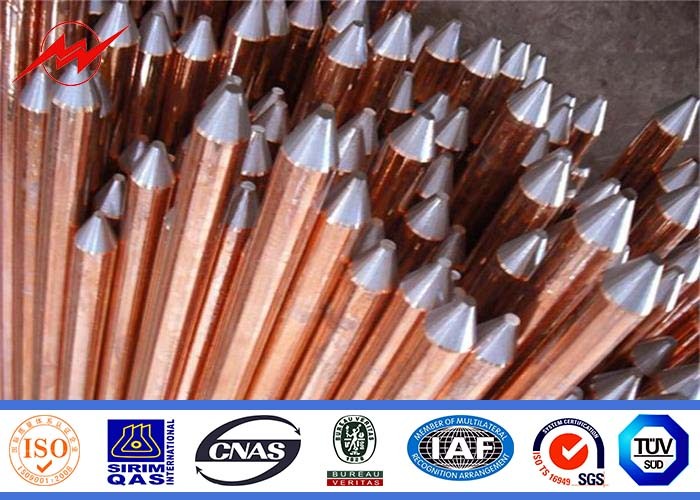

CE UL467 Custom Copper Ground Rod Good Conductivity Used In The Grounding Device 2
