African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV

Çin African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV Tedarikçi

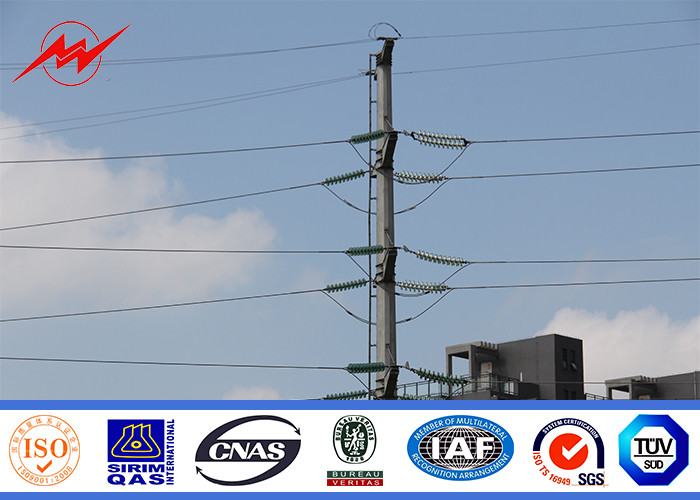

Büyük resim :  African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV

Ürün ayrıntıları:

Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/SGS
Model Number: Galvanized Steel Power Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 pcs
Fiyat: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
İletişim
Detaylı ürün tanımı
Product Name: Galvanized Steel Power Pole Application: Power Line
Thickness: 1 mm to 36mm Tolerance of the dimension: +-2%
Life time: 50 years Welding Standard: AWS (American Welding Society ) D 1.1
Material: Q345
Vurgulamak:

power distribution poles

,

steel power poles

African Bitumen 35 M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV Transmission Line





 Specifications:



Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.



Specification for Asian Philippines Electric Power Transmission Line Pole

 African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV 0





 Galvanization

 The galvanization of the steel pole are under strict control.Galvanization is achieved by immersion in a  molten zinc bath(450d°) after pre-treated(dipping).





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV 1





 Package

 Packing with plastic paper or according to client’s request.

 African Bitumen 35M Double Circuit Galvanized Steel Power Pole 10 KV - 550 KV 2
