6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance

Çin 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance Tedarikçi
6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance Tedarikçi 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance Tedarikçi 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance Tedarikçi 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance Tedarikçi

Büyük resim :  6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance

Ürün ayrıntıları:

Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/
Model Number: Steel Utility Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 pcs
Fiyat: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
İletişim
Detaylı ürün tanımı
Product Name: Steel Utility Pole Application: Electrical Power Transmission
Quality Control: ISO 9001:2008 Welding Standard: AWS (American Welding Society ) D 1.1
Surface treatment: Galvanization Bitumen Dimenstion torlance: +- 2%
Vurgulamak:

metal utility poles

,

electrical utility poles

 6mm Polygonal 60FT Electrical Steel Utility Pole with Cross Arm





 Description:



 Our Transmission Pole is designed for the high voltage power transmission and low voltage power  transmission.
 Designed and manufacutred for durability, corrosion resistance and visual appeal.





 Specifications:



Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→

Dimension verify →Flange welding →Hole drilling →sample assemble →

surface clean→ Galvanization or powder coating ,painting →Recalibration →

Packages

Packages

Packing with plastic paper or according to client’s request.



 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-  shaped vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

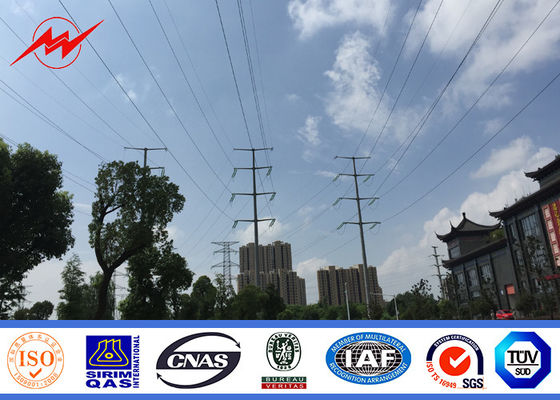

 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance 0



More Pictures:

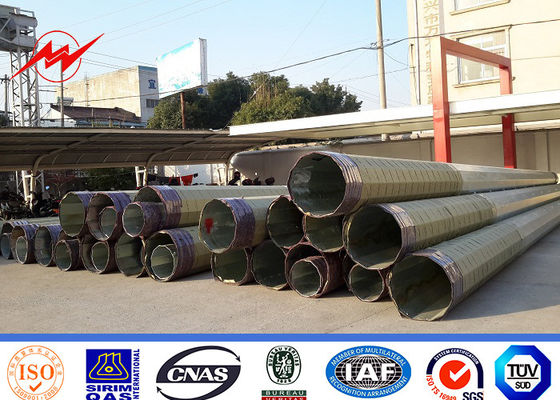

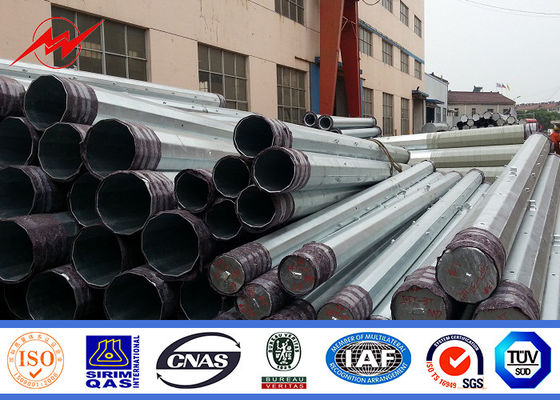

 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance 1





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

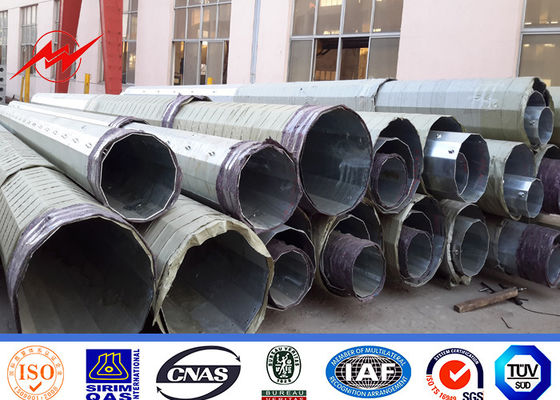

 6mm Polygonal 60FT Electrical Utility Poles With Cross Arm Corrosion Resistance 2
