Ödeme & teslimat koşulları:
|Design load in kg:||300~1000kg applicated to 50cm from the top pole||Surface treatment:||hot dip galvanization|
|Power:||10kv~550kv||Torlance of dimenstion:||+- 2%|
|Suit for:||electricity distribution||Welding standard:||AWS D 1.1|

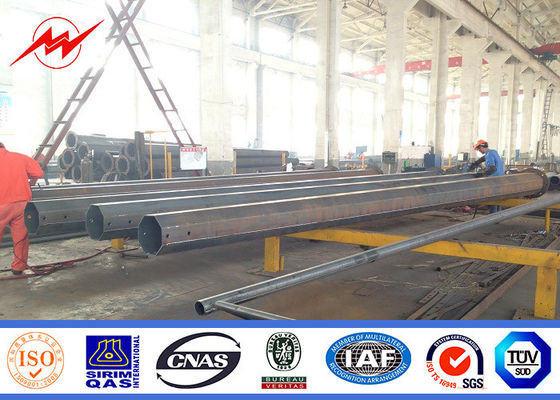

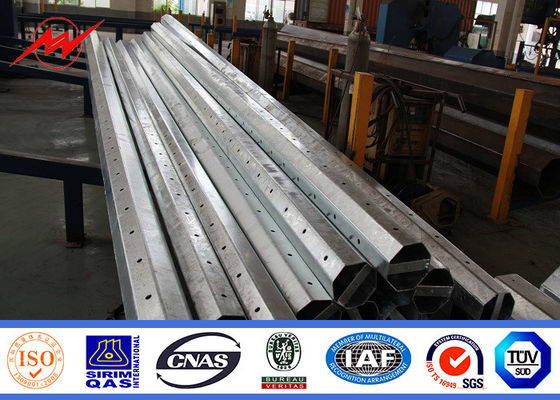

40FT Electrical Power Pole For Power Transmission Line Exported To Philippines
|Steel tower type||Tubular steel pole|
220kV and below
|Welding||CO2 protection welding or submerged arc auto methods|
|Shape||Generally round/polygonal face, and can be designed as the customers require.|
|Surface laye||Zink layer with hot dip galvanized|
|Lifetime||More than 50 years|
|Production capacity:||30000MT per year
Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower. On the basis of application, power tower can be separated to tension type tower, linear type tower, angle type tower, transposition type tower, terminal type power tower and crossing type power tower. The design feature of all tower is space truss structure, forming by single equilateral angle steel, making of material of Q235 (A3F) and Q345 (16Mn) and using black bolt of shearing force to connect pole parts. The tower is mainly consists of angle steel, connecting steel plate and bolt, some is component part of steel plate welding, as column foot. The simple tower part making the hot zincification anticorrosion, transportation, construction and erection is much easy. Usually use shackles on main pole of tower which the height is less than 60 meters for convenience of workers to ascend.
Design and Detail
Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5 Warranty : 30 years
6.Surface treatment :hot dip galvanization
