3m - 50m Height Transmission Line Pole Electric Steel Power Pole With Bitumen

Çin 3m - 50m Height Transmission Line Pole Electric Steel Power Pole With Bitumen Tedarikçi

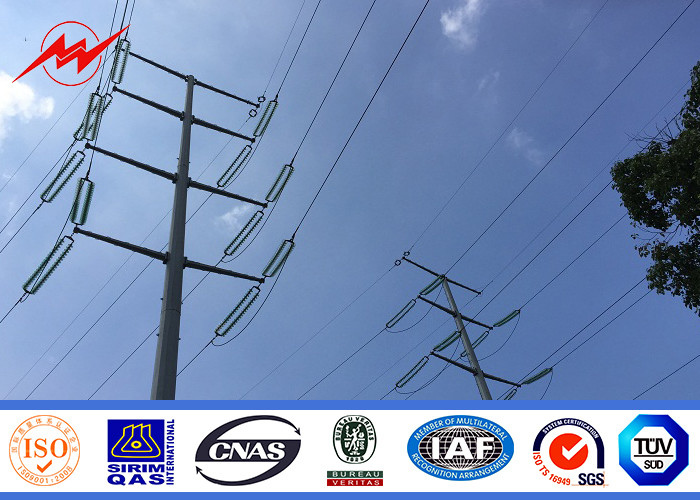

Büyük resim :  3m - 50m Height Transmission Line Pole Electric Steel Power Pole With Bitumen

Ürün ayrıntıları:

Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/SGS
Model Number: Transmission Steel Power Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 pcs
Fiyat: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
İletişim
Detaylı ürün tanımı
Product Name: Galvanized Steel Power Pole Power Capacity: 10kV to 220kV
Height: 3m-50m Joint of Poles: Slip joint, flanged connected
Warranty time: 15 years Thickness: 1mm-36mm
Vurgulamak:

galvanized light pole

,

steel power poles

 Galvanized 9M-15M Transmission Line Electric Steel Power pole with Bitumen



 Steel

 All of our material are purchased from famous mill factory to assure the quality
 A mill certificate issued by the mill factory with stamp and signature must be provided before unload the  material in our factory ,otherwise we have our reason to refuse the material .
 Before put into production ,all the material must pass the chemical and physical analysis to make sure  that they have meet the requested strength and component.







 Specifications:



Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm) Material
8M 2.5 100 210 2.75 8 6.2 Gr65
8M 5 120 290 2.75 8 6.2 Gr65
8M 6.5 130 330 2.75 8 6.2 Gr65
8M 8 170 360 2.75 8 6.2 Gr65
8M 10 180 405 2.75 8 6.2 Gr65
10M 11 145 334 3 12 8 Gr65
11M 6 120 246 3 12 8.9 Gr65
11.8M 5 150 355 3 8 9.4 Gr65
11.8M 6.5 180 400 3 8 9.4 Gr65
11.8M 8 190 440 3 8 9.4 Gr65
11.8M 10 190 450 3.5 8 9.4 Gr65
11.8M 12.5 220 500 3.5 8 9.4 Gr65
11.8M 16 230 560 3.5 8 9.4 Gr65
11.8M 20 240 585 4 8 9.4 Gr65
11.8M 25 260 655 4 8 9.4 Gr65
11.8M 32 260 660 5 8 9.4 Gr65




 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages











 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1





 Surface Treatment
 Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.



 3m - 50m Height Transmission Line Pole Electric Steel Power Pole With Bitumen 0



 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained inspection engineers during every procedure from raw material stage to finished product  and delivery.









 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
