Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Product Name: | Steel Electric Power Poles | Application: | Power Distribution |
|---|---|---|---|
| Surface treatment: | HDG Powder coating | Certificate: | ISO |
| Thickness: | 6mm | Dimenstion torlance: | +- 2% |
| Vurgulamak: | electric utility poles,steel utility poles |
||
3 Sections 30m 6mm Steel Electric Power Poles with Cross Arm
Specification:
|
Height |
From 9 meter to 100 meter |
|
Suit for |
Electric Power Transmission and Distribution |
|
Shape |
Polygonal or Conical |
|
Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
|
Power Capacity |
10kV to 220kV |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Standard |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 36mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting → Recalibration →Packages |
|
Packages |

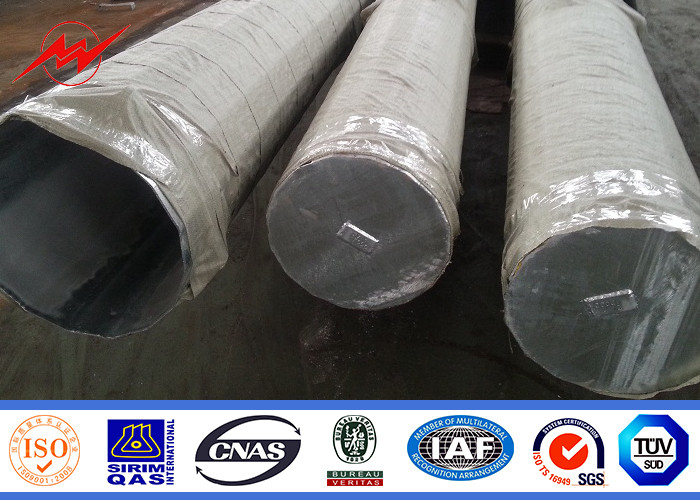

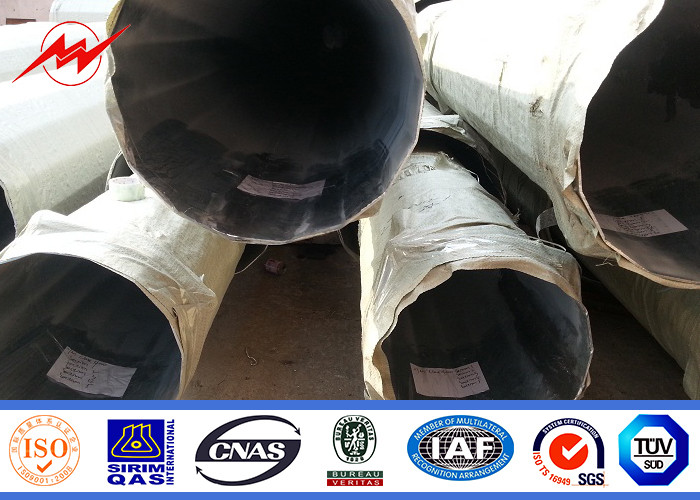

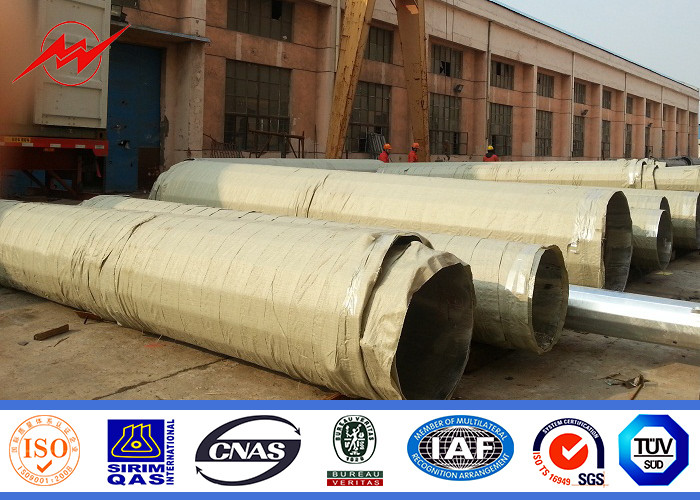

Packing with plastic paper or according to client’s request. |
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
