12M Polygonal Street Light Poles Single Arm Outdoor Square Highway Light Pole

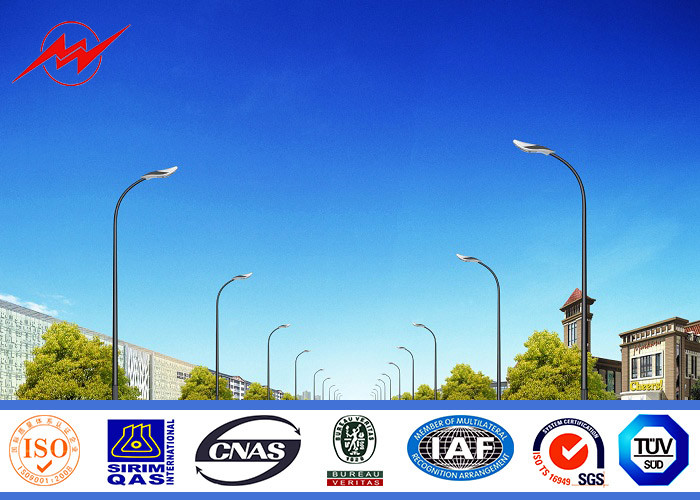

Büyük resim : 12M Polygonal Street Light Poles Single Arm Outdoor Square Highway Light Pole

Ürün ayrıntıları:

Place of Origin:	China,Jiangsu
Marka adı:	MilkyWay
Sertifika:	ISO9001/BV/
Model Number:	Street Light Poles

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 pcs
Fiyat:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

İletişim

Detaylı ürün tanımı

tolerance:	+/-2%	Product Name:	12M Highway Polygonal Street Light Poles Single Arm Outdoor Pole Square
Color variable:	any color	Payment Terms::	T/T ,L/C
Application:	road,highway,street,square	safty Facor:	1.8
Marka adı:	MilkyWay
Vurgulamak:	street lamp pole , galvanized street light pole

12M Highway Polygonal Street Light Poles Single Arm Outdoor Pole Square

Specification:

1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization

Drawings:

12M Polygonal Street Light Poles Single Arm Outdoor Square Highway Light Pole 0

Type	Street Lamp pole, lamp post . Lamp column
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
Suit for	Highway Roadway Residential subdivisions Commercial development
Option	Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm.
Production Process	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
