10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape

Sertifika
Çin Jiangsu milky way steel poles co.,ltd Sertifikalar
Çin Jiangsu milky way steel poles co.,ltd Sertifikalar
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

Ben sohbet şimdi

10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape

Çin 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi
10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape Tedarikçi

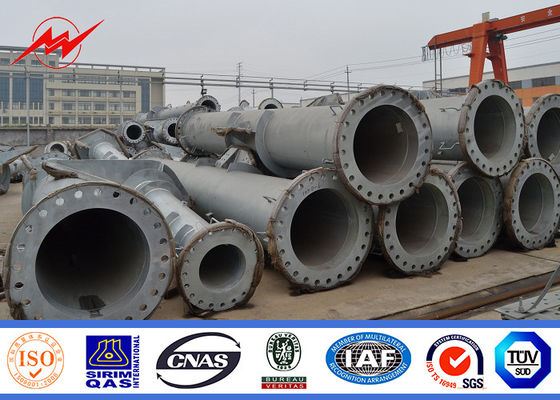

Büyük resim :  10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape

Ürün ayrıntıları:

Place of Origin: China
Marka adı: MilkyWay
Sertifika: ISO9001/BV/SGS
Model Number: Transmission Steel Power Pole

Ödeme & teslimat koşulları:

Minimum Order Quantity: 1 pcs
Fiyat: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
İletişim
Detaylı ürün tanımı
Product Name: Galvanized Steel Pole Shape: Polygonal Round
Package: Nude Length of per section: Within 14 meter once forming
Thickness: 1 mm to 36mm Surface treatment: Hot dip galvanized
Vurgulamak:

power distribution poles

,

steel power poles

 66kV Africa 10m-20m Galvanized Steel Power Pole Electric Pole with Galvanization

 Steel

 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.







 Galvanization test
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

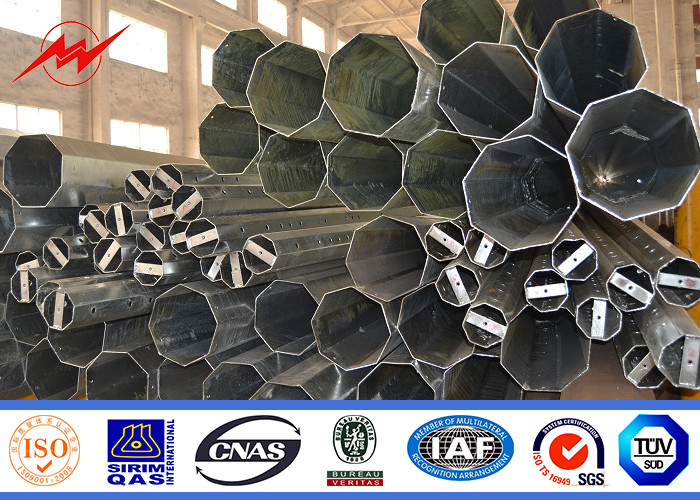

 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape 0



 Specifications:

Electric Pole Specification In Congo
Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm) Material
8M 2.5 100 210 2.75 8 6.2 Gr65
8M 5 120 290 2.75 8 6.2 Gr65
8M 6.5 130 330 2.75 8 6.2 Gr65
8M 8 170 360 2.75 8 6.2 Gr65
8M 10 180 405 2.75 8 6.2 Gr65
10M 11 145 334 3 12 8 Gr65
11M 6 120 246 3 12 8.9 Gr65

Electric Pole Specification In Congo
11.8M 5 150 355 3 8 9.4 Gr65
11.8M 6.5 180 400 3 8 9.4 Gr65
11.8M 8 190 440 3 8 9.4 Gr65
11.8M 10 190 450 3.5 8 9.4 Gr65
11.8M 12.5 220 500 3.5 8 9.4 Gr65
11.8M 16 230 560 3.5 8 9.4 Gr65
11.8M 20 240 585 4 8 9.4 Gr65
11.8M 25 260 655 4 8 9.4 Gr65
11.8M 32 260 660 5 8 9.4 Gr65







Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.

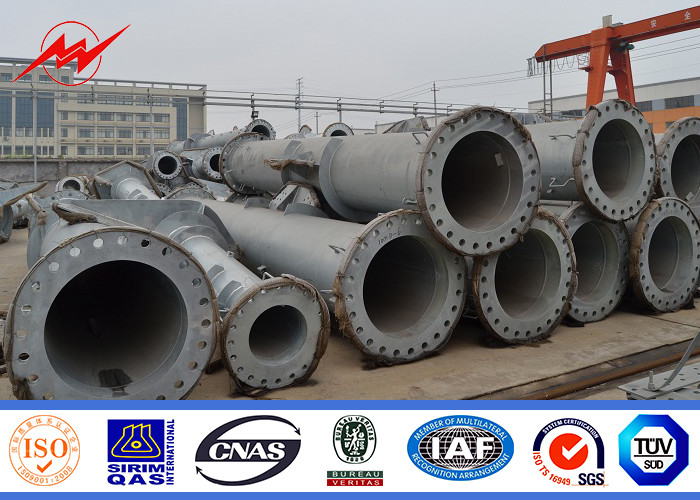

 10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape 1





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.







 More Photo

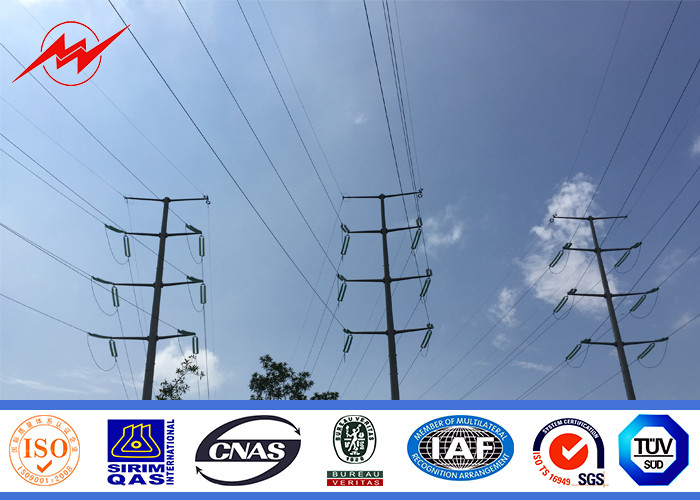

10m-20m Galvanised Steel Power Poles / Electric Transmission Line Poles Round Shape 2
